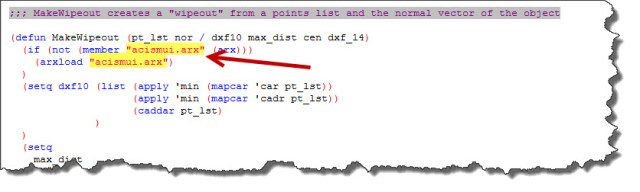

It has been a while since using this LISP routine, but apparently the routine that was posted a couple of years ago (found here: https://autocadtips.wordpress.com/2011/05/28/autolisp-objects-2-wipeout/) and written by Giles Chanteau stopped working in newer releases of AutoCAD because it now needs to call upon a different .ARX file (AutoCAD Runtime eXtension).
The LISP routine creates a wipeout object from selecting a closed object. This might not seem like a big deal since you can do the same thing with the WIPEOUT command, but this routine lets you select closed curved objects with the exception of SPLINE objects.
- Load the code below
- Use OB2WO <enter> in the command line to start.
- Select a closed object whose shape from which you would like to create a wipeout (Circle, Ellipse, Closed Polyline with or without arc segments).
- After selecting the object, you are asked if the object that you selected should be erased after the wipeout is created. By default, “No” is selected and the object will remain and the wipeout that is created is placed on the current layer. so make sure that the layer you want it on is set current,

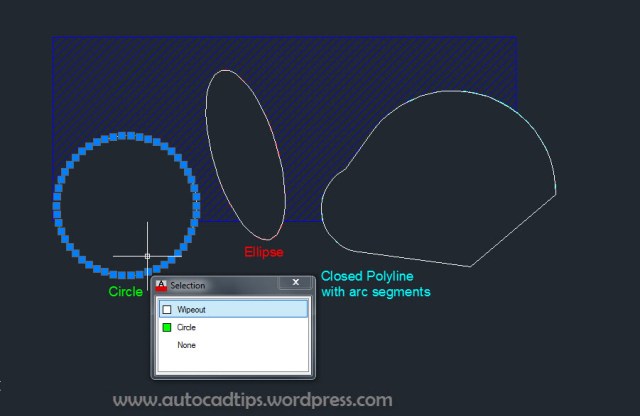

The above picture shows a Hatched area with some curved closed shapes.
Shown below, The wipeouts have been created and the original selected object remains.
Thanks to Giles Chanteau for his routines and for his presence on the various forums always willing to ask and answer question in a pleasant manner, Thanks again Giles
;;; OB2WO (gile) -Gilles Chanteau- 10/03/07 ;;; Creates a "Wipeout" from an object (circle, ellipse, or polyline with arcs) ;;; Works whatever the current ucs and object OCS ;;; http://forums.autodesk.com/t5/Visual-LISP-AutoLISP-and-General/wipeout-with-arcs/m-p/786490#M12148 (defun c:ob2wo (/ ent lst nor) (vl-load-com) (if (and (setq ent (car (entsel))) (member (cdr (assoc 0 (entget ent))) '("CIRCLE" "ELLIPSE" "LWPOLYLINE") ) (setq lst (ent2ptlst ent)) (setq nor (cdr (assoc 210 (entget ent)))) ) (progn (vla-StartundoMark (vla-get-ActiveDocument (vlax-get-acad-object)) ) (makeWipeout lst nor) (initget "Yes No") (if (= (getkword "\nDelete source object? [Yes/No] <No>: ") "Yes" ) (entdel ent) ) (vla-EndundoMark (vla-get-ActiveDocument (vlax-get-acad-object)) ) ) ) ) ;;; ENT2PTLST ;;; Returns the vertices list of the polygon figuring the curve object ;;; Coordinates defined in OCS (defun ent2ptlst (ent / obj dist n lst p_lst prec) (vl-load-com) (if (= (type ent) 'ENAME) (setq obj (vlax-ename->vla-object ent)) ) (cond ((member (cdr (assoc 0 (entget ent))) '("CIRCLE" "ELLIPSE")) (setq dist (/ (vlax-curve-getDistAtParam obj (vlax-curve-getEndParam obj) ) 50 ) n 0 ) (repeat 50 (setq lst (cons (trans (vlax-curve-getPointAtDist obj (* dist (setq n (1+ n)))) 0 (vlax-get obj 'Normal) ) lst ) ) ) ) (T (setq p_lst (vl-remove-if-not '(lambda (x) (or (= (car x) 10) (= (car x) 42) ) ) (entget ent) ) ) (while p_lst (setq lst (cons (append (cdr (assoc 10 p_lst)) (list (cdr (assoc 38 (entget ent)))) ) lst ) ) (if (/= 0 (cdadr p_lst)) (progn (setq prec (1+ (fix (* 25 (sqrt (abs (cdadr p_lst)))))) dist (/ (- (if (cdaddr p_lst) (vlax-curve-getDistAtPoint obj (trans (cdaddr p_lst) ent 0) ) (vlax-curve-getDistAtParam obj (vlax-curve-getEndParam obj) ) ) (vlax-curve-getDistAtPoint obj (trans (cdar p_lst) ent 0) ) ) prec ) n 0 ) (repeat (1- prec) (setq lst (cons (trans (vlax-curve-getPointAtDist obj (+ (vlax-curve-getDistAtPoint obj (trans (cdar p_lst) ent 0) ) (* dist (setq n (1+ n))) ) ) 0 ent ) lst ) ) ) ) ) (setq p_lst (cddr p_lst)) ) ) ) lst ) ;;; MakeWipeout creates a "wipeout" from a points list and the normal vector of the object (defun MakeWipeout (pt_lst nor / dxf10 max_dist cen dxf_14) (if (not (member "acismui.arx" (arx))) (arxload "acismui.arx") ) (setq dxf10 (list (apply 'min (mapcar 'car pt_lst)) (apply 'min (mapcar 'cadr pt_lst)) (caddar pt_lst) ) ) (setq max_dist (float (apply 'max (mapcar '- (apply 'mapcar (cons 'max pt_lst)) dxf10) ) ) ) (setq cen (mapcar '+ dxf10 (list (/ max_dist 2) (/ max_dist 2) 0.0))) (setq dxf14 (mapcar '(lambda (p) (mapcar '/ (mapcar '- p cen) (list max_dist (- max_dist) 1.0) ) ) pt_lst ) ) (setq dxf14 (reverse (cons (car dxf14) (reverse dxf14)))) (entmake (append (list '(0 . "WIPEOUT") '(100 . "AcDbEntity") '(100 . "AcDbWipeout") '(90 . 0) (cons 10 (trans dxf10 nor 0)) (cons 11 (trans (list max_dist 0.0 0.0) nor 0)) (cons 12 (trans (list 0.0 max_dist 0.0) nor 0)) '(13 1.0 1.0 0.0) '(70 . 7) '(280 . 1) '(71 . 2) (cons 91 (length dxf14)) ) (mapcar '(lambda (p) (cons 14 p)) dxf14) ) ) )
Need this, but can’t get to work in AC2014?
What is the error that displays? I tested this in AutoCAD 2014 and 2013 and it worked
Tried it in Civil 3d 2012 Sp4 and it didn’t work. It seemed to execute properly, but no wipeout.
It’s possible to use other means to create a close polyline, such as c2gon.lsp then use just use polygon option from the wipeout command.
Thanks a lot
Ina AutoCAD 2015 the routine comes up with following errror
Select object: ; error: no function definition: VLAX-ENAME->VLA-OBJECT
THANKS A LOT
in autocad 2016 appears this message “error: ARXLOAD failed”, have someone tested or modify the lisp?
I just tested this version of the LISP routine on 2016 and it works fine.
Awesome routine, thank you so much for this routine, saves me a TON of time!
Can you do a small addition to the routine … make the line colour of the wipeout colour 254 or alternative using true colours to 254,254,254. This way this will not even show on the printout.
Not working for me. CAD 2015
