I recently posted some alternatives to the new ARRAY commands that are in AutoCAD 2012 and forgot to post this one. It allows you to create a polar array.

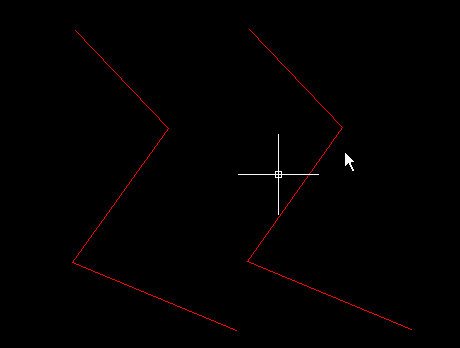

Here’s How:
- POLAR <enter> to start
- Select Objects <enter> when done selecting
- Specify the center point of the rotation
- Specify the start point of the rotation
- Specify the rotation angle: 2 ways shown
- 1) With Dynamic Input enabled, I hit the TAB button on the keyboard and specify the angle degree
- 2) Create a line the specifies the desired angle.
After you have made the Polar Array and like the results, do a REGEN (RE <enter>) to regenerate the model and get rid of the temporary dashed lines that were created while running the command.
;;; ========================================================================
;;; the following code are writen by CHEN QING JUN ;
;;; Civil engineering Department, South China University of Technology ;
;;; Purpose: To dynamic copy Object in polar ;
;;; Version v 1.0 2011.03.16 ;
;;; Http://chenqj.blogspot.com ;
;;; ========================================================================
;;; =======================================================================;
;;; The main function ;
;;; =======================================================================;
(vl-load-com)
(defun c:polar( / ang angnow gr oang p0 px px1 ss ss1)
(setq ss (std-sslist (ssget))
p0 (getpoint "\nP0,the center :") px (getpoint p0 "\nThe angle start Point:")
px1 (getpoint p0 "\nThe angle end Point:")
ang (- (angle p0 px1)(setq oang (angle p0 px)))
)
(prompt "\nThe rotation point:")
(while (= (car (setq gr (grread nil 5 0))) 5)
(if ss1 (mapcar 'vla-delete ss1))
(redraw)
(setq angnow (- (angle p0 (cadr gr)) oang))
(if (and (< ang 0)(> angnow 0)) (setq angnow (- angnow (* 2 pi))))
(if (and (> ang 0)(< angnow 0)) (setq angnow (+ (* 2 pi) angnow)))
(setq ss1 (q:ss:dyngenpolar ss (fix (/ angnow ang)) p0 ang))
(q:grdraw:arc p0 (/ (getvar "viewsize") 4.0) oang angnow)
)
(princ)
)
;;; =======================================================================;
;;; by qjchen, grdraw circle arc ;
;;; =======================================================================;
(defun q:grdraw:arc(cen r ang angadd / angdiv n)
(grdraw cen (polar cen ang r) 3 1)
(grdraw cen (polar cen (+ ang angadd) r) 3 1)
(setq n 100 angdiv (/ angadd n))
(repeat n
(grdraw (polar cen ang r)(polar cen (setq ang (+ ang angdiv)) r) 1 1)
)
)
;;; =======================================================================;
;;; by qjchen, copy ss according to the direction and vector ;
;;; =======================================================================;
(defun q:ss:dyngenpolar (sslst n cen ang / i obj1 ss xobj)
(setq ss nil)
(foreach x sslst
(setq xobj (vlax-ename->vla-object x) i 1)
(repeat n
(setq ss (cons (setq obj1 (vla-copy xobj)) ss))
(Vla-rotate obj1 (vlax-3d-point cen) (* ang i))
(setq i (1+ i))
)
)
ss
)
;;; =======================================================================;
;;; selection to list, by Reini Urban ;
;;; =======================================================================;
(defun std-sslist (ss / n lst)
(if (eq 'pickset (type ss))
(repeat (setq n (fix (sslength ss))) ; fixed
(setq lst (cons (ssname ss (setq n (1- n))) lst))))
)
(princ "by qjchen@gmail.com, To dynamic rotate copy object, the command is Test")
