Super Secret: Edit Those Un-editable Blocks

Posted on December 15, 2011 by AutoCAD Tips

http://wp.me/p1aURt-jT

This one’s for you Eric.

Intead of knocking over your cubicle because you can’t edit a block, there is an AutoCAD system variable that lets you lock your blocks from being able to edit them in the Block Editor. So if you cannot explode a block or edit in the block editor, this tip is for you.

  • The system variable is BLOCKEDITLOCK and can be set to either 1 or 0 (zero)
  • <0> = Off – Block Editor can be opened
  • <1> = On – Block Editor cannot be opened

~enjoy

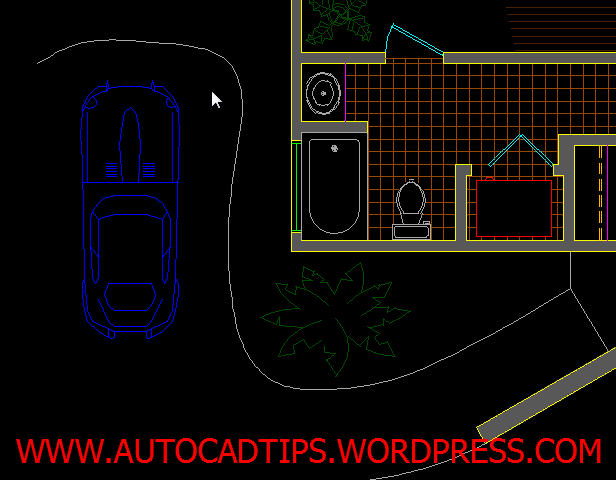

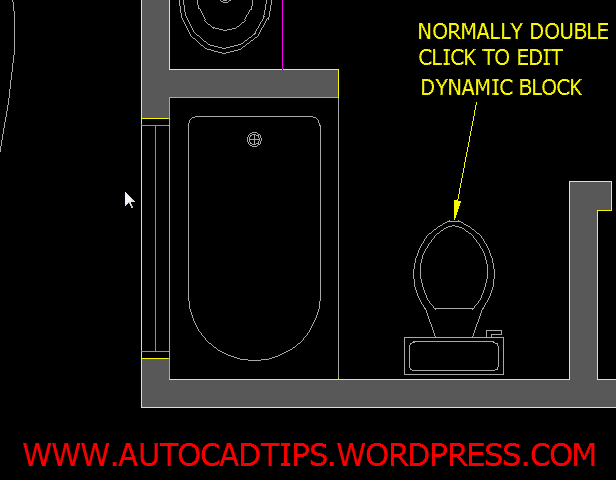

Below shows how this variable affects “Dynamic Blocks” Usually you double click a dynamic block in order to select the block from a list and then that block will open in the block editor. But with this System Variable turned on, a double-click will only bring up the properties box.
