AutoLISP: Erase Continuous With a Window

A lot of the drawings that I get I end up erasing a lot of stuff. And after using SkethUP’s erase command, I wish that AutoCAD’s erase command worked in the same way. I asked Lee-Mac for help with this and he delivered a great little routine that I am sure you guys will enjoy.

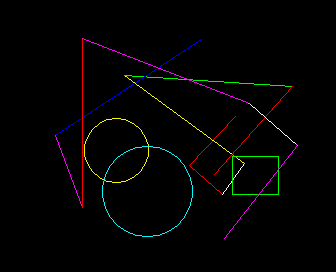

What it does is let you select objects with either a window or crossing window. And after making the selection set it automatically erases the selection and continues the erase command.

Here’s How:

  • EC <enter> to start Erase Continuous
  • Make selection sets with a Window or Crossing Window
  • The command will stay in a loop, so to end the routine, hit the escape <ESC> button

; Erase Continuous by Lee-Mac

(defun c:ec ( / p1 p2 ss )

(while

(and

(setq p1 (getpoint "\nSpecify First Corner: "))

(setq p2 (getcorner "\nSpecify Opposite Corner: " p1))

)

(if (setq ss (ssget (if (< (car p1) (car p2)) "_W" "_C") p1 p2))

(command "_.erase" ss "")

)

)

(princ)

)

Here is a version that uses the grread function

;Erase Continuous by Lee-Mac. Uses grread

(defun c:ec ( / p1 p3 ls hi ss )

(while

(and (setq p1 (getpoint "\nSpecify First Corner: "))

(progn

(princ "\nSpecify Opposite Corner: ")

(while (= 5 (car (setq p3 (grread t 13 0))))

(redraw)

(setq p3 (cadr p3))

(setq ls

(list

p1

(list (car p3) (cadr p1) (caddr p1))

p3

(list (car p1) (cadr p3) (caddr p1))

)

)

(setq hi (if (< (car p1) (car p3)) 0 1))

(mapcar '(lambda ( a b ) (grdraw a b -1 hi)) ls (append (cdr ls) (list p1)))

)

(listp (setq p3 (cadr p3)))

)

)

(redraw)

(if (setq ss (ssget (if (< (car p1) (car p3)) "_W" "_C") p1 p3))

(command "_.erase" ss "")

)

)

(redraw) (princ)

)
