AutoCAD 2014 Arc Improvement

With AutoCAD 2014, the ARC command has a simple-but-needed improvement. By default in AutoCAD, arcs are created counter clockwise. With 2014 you can control the creation of arcs to be clockwise or counter clockwise by simply holding the CTRL button.

See below for a more detailed look:

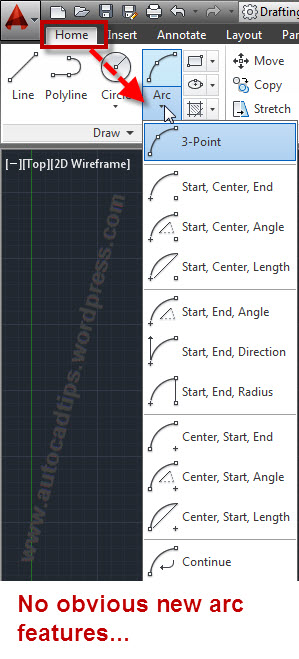

Simply opening the Arc tool’s flyout, there isn’t any obvious, visible change.



2014 Arc feature1

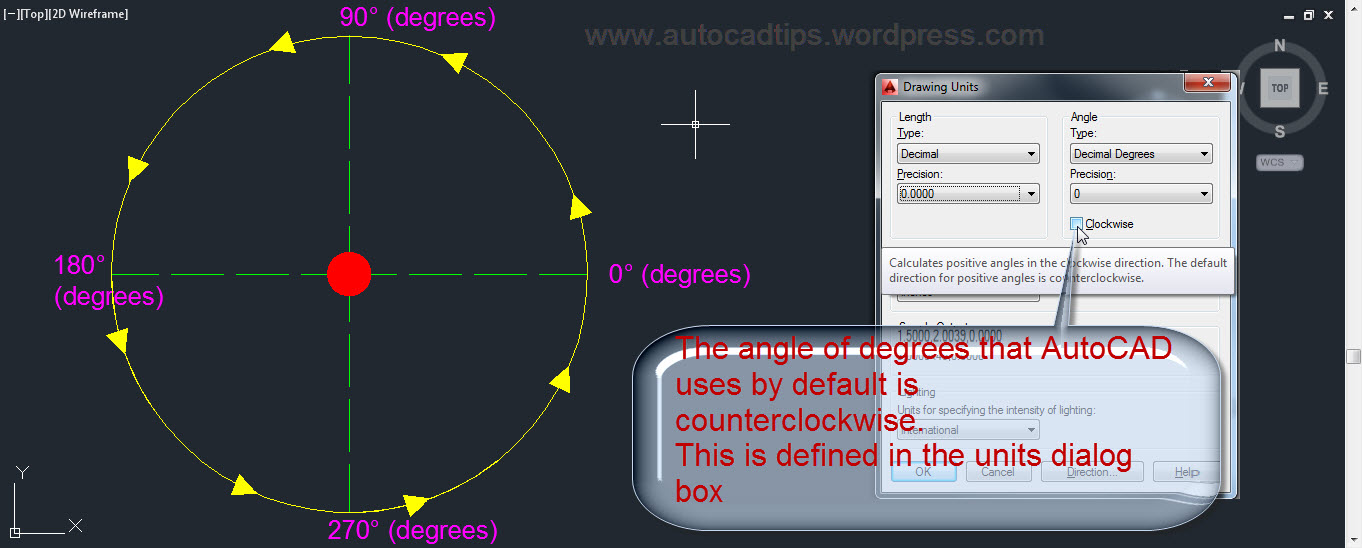

The direction that arcs are created are controlled in the UNITS dialog box

2014 Arc feature2



Although the new ARC direction option is available in all of the various arc tools, the most practical and obvious uses of the new ARC direction option are found in the ARC options shown below.

2014 Arc feature3

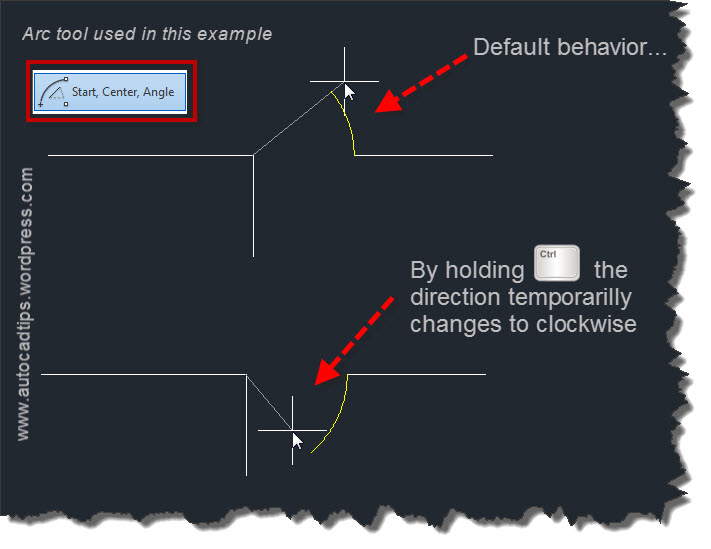

In the picture below, the upper arc that is being created shows the default ARC direction. The lower arc shows the new ARC direction option by hold the CTRL button during the command

2014 Arc Feature4

Advertisements

About AutoCAD Tips

This blog serves as a knowledge base for myself (and anyone else) so that I can reference tips & tricks that I have learned and also refer others to it as well. I hope that this blog helps you learn at least one tip to make your drafting/design experience better.
This entry was posted in BASICS, New in 2014, TIPS. Bookmark the permalink.

3 Responses to AutoCAD 2014 Arc Improvement

  1. Pingback: مدونتات تتكلم عن برامج اوتوديسك 2014 | مهاويس البيم

  2. Release12 rules says:

    Wow it only took 30+ years to fix this. Now if they can only make it repeat the same type of arc more than once in a row. Doubt I’ll be alive by then.

  3. Guira says:

    Thanks! It’s a great tip… very useful.
    Do you know how can I change the default drawing of an arc? I want to draw an arc Center, Start, End, everytime I type “arc” in the command line, and I cannot find how change this default behaviour.
