AutoLISP: Create a Roof Pitch Symbol

If you need to create a roof pitch symbol this routine will surely help.

Here’s how:

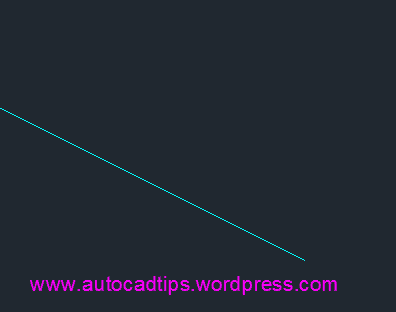

  • PS <enter> to start “Pitch Symbol”
  • Select a line that has the slope that you need to calculate
  • Specify the base length of the symbol. (This is the horizontal line of the triangle). this can be done by entering a value in the command line or by picking 2 points
  • Specify what side of the line you want the symbol to be placed on.
  • Move the symbol into place

Note that the symbol created is not a block, it is a group


;;   PITCH.LSP

(defun c:pitch_symbol (/ a b c f g h i j k l m n p oldosmode)
   (if (= (getvar "dimscale") 0) (setvar "dimscale" 1))
   (setq oldosmode (getvar "osmode"))
   (setvar "osmode" 0)
   (cond
      ((not (setq a (entsel "\nSelect LINE: "))))
      ((/= "LINE" (cdr (assoc 0 (setq c (entget (car a)))))) (alert "Object selected is not a LINE segment."))
      ((not (setq b (angle (cdr (assoc 10 c)) (cdr (assoc 11 c))))))
      ((apply 'or (mapcar '= (list 0 (* pi 0.5) pi (* pi 1.5) (* pi 2)) (list b b b b b))) (alert "Object selected has no pitch value."))
      (t
         (if (not PITCH_BASE) (setq PITCH_BASE (getvar "dimdli")))
         (if (not (setq c (getdist (strcat "\nBase length <" (rtos PITCH_BASE) ">: "))))
            (setq c PITCH_BASE)
            (setq PITCH_BASE c)
         )
         (setq h (* (getvar "dimscale") (getvar "dimgap")))
         (setq d
            (angle
               (setq e (cdr (assoc 10 (setq b (entget (car a))))))
               (setq f (cdr (assoc 11 b)))
            )
         )
         (setq a (inters e f (cadr a) (polar (cadr a) (+ d (* pi 0.5)) 12) nil))
         (if
            (or
               (< (* 0.25 pi) d (* 0.75 pi))
               (< (* 1.25 pi) d (* 1.75 pi))
            )
            (progn
               (setq e (/ (abs (cos d)) (abs (sin d))))
            )
            (progn
               (setq e (/ (abs (sin d)) (abs (cos d))))
            )
         )
         (setq g "12" f (rtos (* e 12.0) 4 4))
         (setq f (if (= f "1'") "12" (setq f (substr f 1 (1- (strlen f))))))
         (if (< pi d (* 2 pi)) (setq d (- d pi)))
         (cond
            ((< 0 d (* pi 0.25))
               (setq f
                  (list
                     (list (+ d (* pi 0.5)) pi c (* pi 1.5) (* e c) (list "C" (* pi 0.5) g) (list "MR" pi f))
                     (list (+ d (* pi 1.5)) (* pi 1.5) (* e c) pi c (list "ML" 0 f) (list "TC" (* pi 1.5) g))
                  )
               )
            )
            ((<= (* pi 0.25) d (* pi 0.50))
               (setq f
                  (list
                     (list (+ d (* pi 0.5)) pi (* e c) (* pi 1.5) c (list "C" (* 0.5) g) (list "MR" pi f))
                     (list (+ d (* pi 1.5)) (* pi 1.5) c pi (* e c) (list "ML" 0 f) (list "TC" (* pi 1.5) g))
                  )
               )
            )
            ((< (* pi 0.50) d (* pi 0.75))
               (setq f
                  (list
                     (list (+ d (* pi 1.5)) 0 (* e c) (* pi 1.5) c (list "C" (* pi 0.5) f) (list "ML" 0 g))
                     (list (+ d (* pi 0.5)) (* pi 1.5) c 0 (* e c) (list "MR" pi g) (list "TC" (* pi 1.5) f))
                  )
               )
            )
            ((<= (* pi 0.75) d pi)
               (setq f
                  (list
                     (list (+ d (* pi 1.5)) 0 c (* pi 1.5) (* e c) (list "C" (* pi 0.5) g) (list "ML" 0 f))
                     (list (+ d (* pi 0.5)) (* pi 1.5) (* e c) 0 c (list "MR" pi f) (list "TC" (* pi 1.5) g))
                  )
               )
            )
         )
         (setq ad nil jp nil cp nil)
         (foreach j f
            (setq p1 (polar a (car j) h))
            (setq p2 (polar p1 (cadr j) (caddr j)))
            (setq p3 (polar p2 (cadddr j) (nth 4 j)))
            (setq ad (append ad (list (list 256 p1 p2 p2 p3 p3 p1))))
            (setq jp (append jp (list (list (nth 5 j) (nth 6 j)))))
            (setq cp (append cp (list p1 p3)))
         )
         (setq p1 (car cp) p2 (cadr cp) p3 (caddr cp) p4 (cadddr cp))
         (setq d1 (car ad) d2 (cadr ad) t1 d1 t2 0)
         (grvecs d1)
         (princ "\n[DRAG] Pitch symbol and [PICK]: ")
         (grread 5)
         (while (/= 3 (car (setq l (grread 5))))
            (if (= 5 (car l))
               (progn
                  (setq n (distance (cadr l) (inters (cadr l) (polar (cadr l) (+ d (* pi 0.5)) 12.0) p1 p2 nil)))
                  (setq m (distance (cadr l) (inters (cadr l) (polar (cadr l) (+ d (* pi 0.5)) 12.0) p3 p4 nil)))
                  (if (< n m)
                     (if (not (equal t1 d1))
                        (progn
                           (grvecs t1)
                           (grvecs d1)
                           (setq t1 d1 t2 0)
                        )
                     )
                     (if (not (equal t1 d2))
                        (progn
                           (grvecs t1)
                           (grvecs d2)
                           (setq t1 d2 t2 1)
                        )
                     )
                  )
               )
            )
         )
         (grvecs t1)
         (setq d1 (cdr t1))
         (setq f (mapcar 'getvar '("highlight" "cecolor")))
         (command "._pline" (setq p1 (nth 0 d1)) "w" "0" ""
            (setq p2 (nth 1 d1))
            (setq p3 (nth 3 d1)) "c")
         (setq e (entlast))
         (setq t2 (nth t2 jp))
         (setq d1 (polar p1 (angle p1 p2) (/ (distance p1 p2) 2)))
         (setq d1 (polar d1 (cadr (car t2)) h))
         (setq d2 (polar p2 (angle p2 p3) (/ (distance p2 p3) 2)))
         (setq d2 (polar d2 (cadr (cadr t2)) h))
         (if (>= (atoi (getvar "acadver")) 12)
            (setvar "cecolor" (itoa (getvar "dimclrt")))
         )
         (command "._text" "j" (car (car t2)) d1 (* (getvar "dimscale") (getvar "dimtxt")) "0" (caddr (car t2)))
         (command "._text" "j" (car (cadr t2)) d2 (* (getvar "dimscale") (getvar "dimtxt")) "0" (caddr (cadr t2)))
         (if (and e (>= (atoi (getvar "acadver")) 13))
            (progn
               (setvar "highlight" 0)
               (setq d (ssadd e))
               (while (setq e (entnext e)) (setq d (ssadd e d)))
               (command "._-group" "_create" "*" "Pitch Symbol" d "")
            )
         )
         (mapcar 'setvar '("highlight" "cecolor") f)
	 (setvar "osmode" oldosmode)
      )
   )
   (princ)
)
(defun c:ps () (c:pitch_symbol))
(princ "\nC:Pitch_Symbol is now loaded.")
(princ"\nType PS to start command.")
(princ)

Advertisements

About AutoCAD Tips

This blog serves as a knowledge base for myself (and anyone else) so that I can reference tips & tricks that I have learned and also refer others to it as well. I hope that this blog helps you learn at least one tip to make your drafting/design experience better.
This entry was posted in AutoLISP, AutoLISP: Creating. Bookmark the permalink.

6 Responses to AutoLISP: Create a Roof Pitch Symbol

  1. neil jones says:

    This isn’t working for me – it is putting 0 as the distance

    • AutoCAD Tips says:

      I am trying to recreate the issue that you are having with this routine but i am unable to do so. Do you mean that when it is asking for a length that it is set at zero?

  2. Neil Jones says:

    I’m running civil 3D and it doesn’t display the horiz and vert distances (just as 0) yet when I start C3D as plain AutoCAD it works as expected – curious..?!?!?!

    • AutoCAD Tips says:

      There must be a C3D variable that is defined in the LISP and is conflicting…
      If you find it, let me know and I will change it. I don’t have C3D or even know how to use C3D

  3. neil jones says:

    I think its template specific – standard ACAD and C3D metric and imperial templates are fine but my template doesn’t work for some reason. I’ll take a look over the next few weeks and try to pin the problem down
