Lock the Position of your Toolbars and Palettes

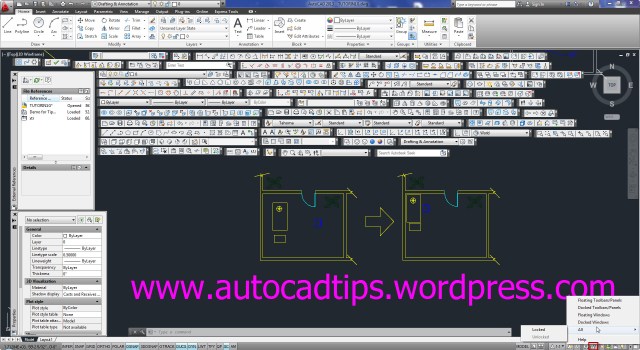

Once you get your toolbars and palettes in place, you’ll want them to stay put right? Here is a way to lock there position. Below is an extreme example with every toolbar placed on the screen and 2 palettes are open as well.

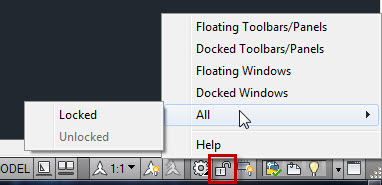

Notice that in the bottom right of the screen in the above picture, there is a little lock with a red square around it (shown below as well):

You can either left or right click on this lock icon and the options shown above will appear.
“Docked” means when you drag a palette/toolbar near the edge of the screen and they snap to the under side of the ribbon or to the side of the screen.

“Window” means palette

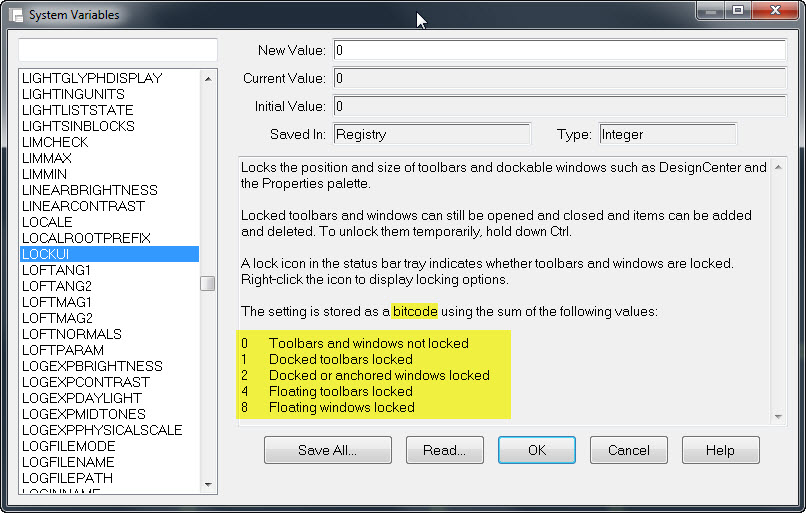

The above interface is a user-friendly  way of adjusting the system variable LOCKUI as shown below. Notice that the system varibale is a bitcode which means that you can choose multiple options and simply add their values together as their value that you enter…

Also – After you have set the position of your toolbars and palettes, don’t forget to save your “workspace.”
