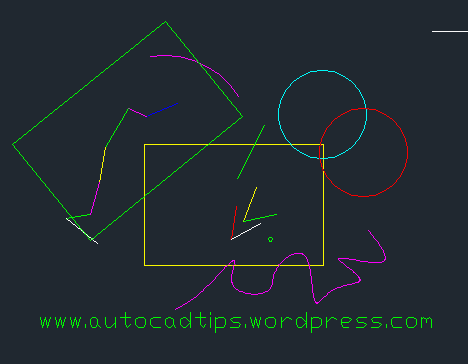

7 Responses to AutoLISP: Delete Outside of Window

1. cihangir says:

   March 13, 2012 at 10:54 PM

   hello my dear, lisp is very nice but i need to delete outside of a polyline, and the polyline is not a rectangle. do you have this lisp ? thank you!

   Reply
   • AutoCAD Tips says:

     March 14, 2012 at 2:23 AM

     Great request!!
     I found one that will do what you are asking about. One limitation that this routine has is that it only works if your closed polyline consists of straight segments (no arcs).

     I created a post just for you
     https://autocadtips.wordpress.com/2012/03/14/trim-and-delete-outside-of-closed-polyline/

     ~Greg

     Reply
2. cihangir says:

   March 14, 2012 at 9:32 PM

   you are so polite, and it is working awesome, this is more than a wordpress publishing, thank you!

   Reply
3. Alex Danishevsky says:

   June 28, 2013 at 8:42 AM

   This is a fantastic add-on. Is there a way to exclude entities touching the polyline? My job requires me to delete thousands of circles inside certain polylines but NOT ones that touch/intersect the polyline selected. There must be a radius measurement check somewhere….

   Reply
   • AutoCAD Tips says:

     July 5, 2013 at 7:52 AM

     Here is a routine that has multiple selection routines within it.
     I don’t know where i found this routine, but the author is Giles Chanteau
     These routines are for selecting only. So after it makes the selection set, you must delete the objects on your own.
     The option that you are looking for is SSOF

     ~enjoy

     ;;; Special_Selections -Gilles Chanteau- (gile)
     ;;; Some routines to create specific selection sets.
     ;;;===============================================================;;;
     ;; Select by layer
     (defun c:ssl (/ ss ent)
       (and
         (or
           (and
     	(setq ss (cadr (ssgetfirst)))
     	(= 1 (sslength ss))
     	(setq ent (ssname ss 0))
           )
           (and
     	(sssetfirst nil nil)
     	(setq ent (car (entsel)))
           )
         )
         (sssetfirst nil (ssget "_X" (list (assoc 8 (entget ent)))))
       )
       (princ)
     )

     ;;;===============================================================;;;

     ;; Select by type of entity
     (defun c:sse (/ ss)
       (and
         (or
           (and
     	(setq ss (cadr (ssgetfirst)))
     	(= 1 (sslength ss))
     	(setq ent (ssname ss 0))
           )
           (and
     	(sssetfirst nil nil)
     	(setq ent (car (entsel)))
           )
         )
         (sssetfirst nil (ssget "_X" (list (assoc 0 (entget ent)))))
       )
       (princ)
     )

     ;;;===============================================================;;;

     ;; Select by color
     (defun c:ssc (/ ent elst col)
       (and
         (or
           (and
     	(setq ss (cadr (ssgetfirst)))
     	(= 1 (sslength ss))
     	(setq ent (ssname ss 0))
           )
           (and
     	(sssetfirst nil nil)
     	(setq ent (car (entsel)))
           )
         )
         (setq elst (entget ent)
     	  col  (cond
     		 ((assoc 430 elst))
     		 ((assoc 420 elst))
     		 ((assoc 62 elst))
     		 (T (cons 62 256))
     	       )
         )
         (sssetfirst nil (ssget "_X" (list col)))
       )
       (princ)
     )

     ;;;===============================================================;;;

     ;; Select by Line type
     (defun c:sstl (/ ent tl)
       (and
         (or
           (and
     	(setq ss (cadr (ssgetfirst)))
     	(= 1 (sslength ss))
     	(setq ent (ssname ss 0))
           )
           (and
     	(sssetfirst nil nil)
     	(setq ent (car (entsel)))
           )
         )
         (or	(setq tl (assoc 6 (entget ent)))
     	(setq tl (cons 6 "BYLAYER"))
         )
         (sssetfirst nil (ssget "_X" (list tl)))
       )
       (princ)
     )

     ;;;===============================================================;;;

     ;; Select by attribute value
     (defun c:ssatt (/ doc att elst tag val name ss1 ss2)
       (vl-load-com)
       (and
         (setq doc (vla-get-ActiveDocument (vlax-get-acad-object)))
         (setq att (car (nentsel "\nSelect the source attribute: ")))
         (setq att (vlax-ename->vla-object att))
         (= (vla-get-ObjectName att) "AcDbAttribute")
         (setq tag (vla-get-TagString att)
     	  val (vla-get-TextString att)
     	  blk (vla-ObjectIDToObject doc (vla-get-OwnerId att))
     	  name (if (vlax-property-available-p blk 'EffectiveName)
     		 (vla-get-EffectiveName blk)
     		 (vla-get-Name blk)
     	       )
     	  ss2 (ssadd)
         )
         (princ "\nSelect blocks or <All>: ")
         (or
           (ssget (list '(0 . "INSERT")
     		   '(66 . 1)
     		   (cons 2 (strcat name ",`*U*"))
     	     )
           )
           (ssget "_X"
     	     (list '(0 . "INSERT")
     		   '(66 . 1)
     		   (cons 2 (strcat name ",`*U*"))
     	     )
           )
         )
         (vlax-for blk (setq ss1 (vla-get-ActiveSelectionSet doc))
           (if (= name
     	     (if (vlax-property-available-p blk 'EffectiveName)
     	       (vla-get-EffectiveName blk)
     	       (vla-get-Name blk)
     	     )
     	  )
     	(foreach a (vlax-invoke blk 'GetAttributes)
     	  (if (and (= (vla-get-TagString a) tag)
     		   (= (vla-get-TextString a) val)
     	      )
     	    (ssadd (vlax-vla-object->ename blk) ss2)
     	    T
     	  )
     	)
     	T
           )
         )
         (not (vla-delete ss1))
         (sssetfirst nil ss2)
       )
       (princ)
     )

     ;;;===============================================================;;;

     ;; SSCU (gile) 31/03/07
     ;; Selection by mutiple target window or capture
     ;; The window frame is parallel to the plane of the current UCS
     ;; The selection is completed by Enter, Space or right-click

     (defun c:sscu (/ sel sst loop p1 gr p2 p3 p4 po ss n ent)

       (defun ssd_err (msg)
         (if	(= msg "function canceled")
           (princ)
           (princ (strcat "\nError: " msg))
         )
         (sssetfirst nil nil)
         (redraw)
         (setq *error* m:err
     	  m:err	nil
         )
         (princ)
       )

       ;; Returns a selection set, point, or nil
       (defun sel (/ loop gr pt)
         (setq loop T)
         (while (and (setq gr (grread T 12 2)) (/= (car gr) 3) loop)
           (cond
     	((= (car gr) 5)
     	 (setq pt (cadr gr))
     	)
     	((or (member gr '((2 13) (2 32)))
     	     (or (= (car gr) 11) (= (car gr) 25))
     	 )
     	 (setq loop nil
     	       pt   nil
     	 )
     	)
           )
         )
         (if	pt
           (cond
     	((ssget pt))
     	(pt)
           )
         )
       )

       (setq	m:err	*error*
     	*error*	ssu_err
       )
       (sssetfirst nil nil)
       (setq sst (ssadd))
       (while (and
     	   (princ "\nSelect Objects: ")
     	   (setq p1 (sel))
     	 )
         (if	(listp p1)
           (progn
     	(princ "\nSpecify opposite corner: ")
     	(setq p1 (list (car p1) (cadr p1)))
     	(while (and (setq gr (grread T 12 0)) (/= (car gr) 3))
     	  (if (= 5 (car gr))
     	    (progn
     	      (redraw)
     	      (setq p2 (list (caadr gr) (cadr p1))
     		    p3 (list (caadr gr) (cadadr gr))
     		    p4 (list (car p1) (cadadr gr))
     	      )
     	      (if (< (car p1) (car p2))
     		(progn
     		  (setq po "_WP")
     		  (grvecs (list 255 p1 p2 255 p2 p3 255 p3 p4 255 p4 p1)
     		  )
     		)
     		(progn
     		  (setq po "_CP")
     		  (grvecs
     		    (list -255 p1 p2 -255 p2 p3 -255 p3 p4 -255 p4 p1)
     		  )
     		)
     	      )
     	    )
     	  )
     	)
     	(redraw)
     	(if (setq ss (ssget po (list p1 p2 p3 p4)))
     	  (repeat (setq n (sslength ss))
     	    (setq ent (ssname ss (setq n (1- n))))
     	    (if	(not (ssmemb ent sst))
     	      (ssadd ent sst)
     	    )
     	    (sssetfirst nil sst)
     	  )
     	)
           )
           (progn
     	(ssadd (ssname p1 0) sst)
     	(sssetfirst nil sst)
           )
         )
       )
       (sssetfirst nil sst)
       (setq	*error*	m:err
     	m:err nil
       )
       (princ)
     )

     ;;;===============================================================;;;

     ;;; SelByObj -Gilles Chanteau- 06/10/06
     ;;; Creates a selection set with all objects or
     ;;; captured in the current view, by the selected object
     ;;; (circle, ellipse, polyline closed).
     ;;; Arguments :
     ;;; - an entity name (ename)
     ;;; - a user selection (Cp or Wp)
     ;;; - a selection filter or nil
     ;;;
     ;;; modifié le 19/07/07 : works with objects outside the window

     (defun SelByObj	(ent opt fltr / obj dist n lst prec dist p_lst ss)
       (vl-load-com)
       (if (= (type ent) 'ENAME)
         (setq obj (vlax-ename->vla-object ent))
         (setq obj ent
     	  ent (vlax-vla-object->ename ent)
         )
       )
       (cond
         ((member (vla-get-ObjectName obj) '("AcDbCircle" "AcDbEllipse"))
          (setq dist	(/ (vlax-curve-getDistAtParam
     		     obj
     		     (vlax-curve-getEndParam obj)
     		   )
     		   50
     		)
     	   n	0
          )
          (repeat 50
            (setq
     	 lst
     	  (cons
     	    (trans
     	      (vlax-curve-getPointAtDist obj (* dist (setq n (1+ n))))
     	      0
     	      1
     	    )
     	    lst
     	  )
            )
          )
         )
         ((and (= (vla-get-ObjectName obj) "AcDbPolyline")
     	  (= (vla-get-Closed obj) :vlax-true)
     	  )
          (setq p_lst (vl-remove-if-not
     		   '(lambda (x)
     		      (or (= (car x) 10)
     			  (= (car x) 42)
     		      )
     		    )
     		   (entget ent)
     		 )
          )
          (while p_lst
            (setq
     	 lst
     	  (cons
     	    (trans (append (cdr (assoc 10 p_lst))
     				 (list (cdr (assoc 38 (entget ent))))
     			 )
     			 ent
     			 1
     	    )
     	    lst
     	  )
            )
            (if (/= 0 (cdadr p_lst))
     	 (progn
     	   (setq prec (1+ (fix (* 25 (sqrt (abs (cdadr p_lst))))))
     		 dist (/ (- (if	(cdaddr p_lst)
     			      (vlax-curve-getDistAtPoint
     				obj
     				(trans (cdaddr p_lst) ent 0)
     			      )
     			      (vlax-curve-getDistAtParam
     				obj
     				(vlax-curve-getEndParam obj)
     			      )
     			    )
     			    (vlax-curve-getDistAtPoint
     			      obj
     			      (trans (cdar p_lst) ent 0)
     			    )
     			 )
     			 prec
     		      )
     		 n    0
     	   )
     	   (repeat (1- prec)
     	     (setq
     	       lst (cons
     		     (trans
     			 (vlax-curve-getPointAtDist
     			   obj
     			   (+ (vlax-curve-getDistAtPoint
     				obj
     				(trans (cdar p_lst) ent 0)
     			      )
     			      (* dist (setq n (1+ n)))
     			   )
     			 )
     			 0
     			 1
     		       )
     		     lst
     		   )
     	     )
     	   )
     	 )
            )
            (setq p_lst (cddr p_lst))
          )
         )
       )
       (cond
         (lst
          (vla-ZoomExtents (vlax-get-acad-object))
          (setq ss (ssget (strcat "_" opt) lst fltr))
          (vla-ZoomPrevious (vlax-get-acad-object))
          ss
         )
       )
     )

     ;;;===============================================================;;;

     ;;; SSOC to select all objects captured following
     ;;; view, by the circle, ellipse, or polyline.

     (defun c:ssoc (/ ss opt)
       (and
         (or
           (and
     	(setq ss (cadr (ssgetfirst)))
     	(= 1 (sslength ss))
           )
           (and
     	(sssetfirst nil nil)
     	(setq ss (ssget	"_:S:E"
     			(list
     			  '(-4 . "<OR")
     			  '(0 . "CIRCLE")
     			  '(-4 . "<AND")
     			  '(0 . "ELLIPSE")
     			  '(41 . 0.0)
     			  (cons 42 (* 2 pi))
     			  '(-4 . "AND>")
     			  '(-4 . "<AND")
     			  '(0 . "LWPOLYLINE")
     			  '(-4 . "&")
     			  '(70 . 1)
     			  '(-4 . "AND>")
     			  '(-4 . "OR>")
     			)
     		 )
     	)
           )
         )
         (sssetfirst
           nil
           (ssdel (ssname ss 0) (SelByObj (ssname ss 0) "Cp" nil))
         )
       )
       (princ)
     )

     ;;;===============================================================;;;

     ;;; SSOF to select all objects, according
     ;;; view, in the circle, ellipse, or polyline.

     (defun c:ssof (/ ss opt)
       (and
         (or
           (and
     	(setq ss (cadr (ssgetfirst)))
     	(= 1 (sslength ss))
           )
           (and
     	(sssetfirst nil nil)
     	(setq ss (ssget	"_:S:E"
     			(list
     			  '(-4 . "<OR")
     			  '(0 . "CIRCLE")
     			  '(-4 . "<AND")
     			  '(0 . "ELLIPSE")
     			  '(41 . 0.0)
     			  (cons 42 (* 2 pi))
     			  '(-4 . "AND>")
     			  '(-4 . "<AND")
     			  '(0 . "LWPOLYLINE")
     			  '(-4 . "&")
     			  '(70 . 1)
     			  '(-4 . "AND>")
     			  '(-4 . "OR>")
     			)
     		 )
     	)
           )
         )
         (sssetfirst
           nil
           (SelByObj (ssname ss 0) "Wp" nil)
         )
       )
       (princ)
     )

     ;;;===============================================================;;;

     ;;; Inv_sel Inverse of the current selection set.

     (defun c:inv_sel (/ ssa ssf n)
       (setq
         ssa	(ssget "_A"
     	       (list '(0 . "~VIEWPORT") (cons 410 (getvar "ctab")))
     	)
       )
       (if (setq ssf (cadr (ssgetfirst)))
         (repeat (setq n (sslength ssf))
           (ssdel (ssname ssf (setq n (1- n))) ssa)
         )
       )
       (sssetfirst)
       (sssetfirst nil ssa)
     )

     ;;;===============================================================;;;

     ;;; SSD version 2.6 (gile) 14/07/08 (dernière révision 17/11/2011)
     ;;; Selection of dynamic blocks by dynamic parameter values
     ;;;
     ;;; applications :
     ;;; - To create a selection set, enter SSD, select a source block
     ;;;   then choose to filter the values ??in the dialog.
     ;;; - Inside of a change order, at the prompt "Select objects: "
     ;;;   enter (SSD).
     ;;; The filter can be done on any drawing or within a selection

     (defun ssd (/ *error* ToString DynBlkPropValue dz ss ent blk name pop fuzz ret sel res)

       (vl-load-com)
       (or *acad* (setq *acad* (vlax-get-acad-object)))
       (or *acdoc* (setq *acdoc* (vla-get-ActiveDocument *acad*)))

       (defun *error* (msg)
         (if	(/= msg "Function canceled")
           (princ (strcat "Erreur: " msg))
         )
         (and blk (not (redraw (vlax-vla-object->ename blk) 4)))
         (setvar 'dimzin dz)
         (princ)
       )

       (defun ToString (v u)
         (cond
           ((= 0 u) (vl-princ-to-string v))
           ((= 1 u) (angtos v (getvar 'aunits) 16))
           ((if (< (abs v) 1e-6)
     	 (rtos v 1 6)
     	 (rtos v (getvar 'lunits) 12)
            )
           )
         )
       )

       ;; DynBlkPropValue
       ;; Dialog box to choose values ??of dynamic parameters
       ;;
       ;; Argument : the list of dynamic parameters

       (defun DynBlkPropValue (lst / tmp file pn unt av dcl_id val)
         (setq tmp  (vl-filename-mktemp "Tmp.dcl")
     	  file (open tmp "w")
         )
         (write-line
           (strcat
     	"DynBlkProps:dialog{label=\"Filter Dynamic Blocks\";"
     	":text{label=\"Nom du bloc : \""
     	(vl-prin1-to-string name)
     	";}spacer;:boxed_column{label=\"dynamic properties\";"
           )
           file
         )
         (foreach p lst
           (setq pn	(vla-get-PropertyName p)
     	    unt	(vla-get-UnitsType p)
           )
           (cond
     	((setq av (vlax-get p 'AllowedValues))
     	 (setq av  (mapcar '(lambda (x) (ToString x unt)) av)
     	       pop (cons (vl-list* pn "*" av) pop)
     	 )
     	 (write-line
     	   (strcat
     	     ":popup_list{label="
     	     (vl-prin1-to-string pn)
     	     ";key="
     	     (vl-prin1-to-string pn)
     	     ";value="
     	     (itoa (1+ (vl-position (ToString (vlax-get p 'Value) unt) av)))
     	     ";edit_width=25;allow_accept=true;}"
     	   )
     	   file
     	 )
     	)
     	((/= pn "Origin")
     	 (setq fuzz (cons pn fuzz))
     	 (write-line
     	   (strcat
     	     ":row{:edit_box{label="
     	     (vl-prin1-to-string pn)
     	     ";key="
     	     (vl-prin1-to-string pn)
     	     ";value="
     	     (vl-prin1-to-string (ToString (vlax-get p 'Value) unt))
     	     ";edit_width=18;allow_accept=true;}"
     	     ":edit_box{label=\"Tolérance\";key="
     	     (vl-prin1-to-string (strcat pn "_fuzz"))
     	     ";value=\"1e-12\";edit_width=6;allow_accept=true;}}"
     	   )
     	   file
     	 )
     	)
           )
         )
         (write-line
           (strcat
     	"}spacer;:radio_row{key=\"selset\";"
     	":radio_button{label=\"The entire drawing\";key=\"all\";value=\"1\";}"
     	":radio_button{label=\"Selection\";key=\"sel\";}}"
     	"spacer;ok_cancel;}"
           )
           file
         )
         (close file)
         (setq dcl_id (load_dialog tmp))
         (if	(not (new_dialog "DynBlkProps" dcl_id))
           (exit)
         )
         (foreach p pop
           (start_list (car p))
           (mapcar 'add_list (cdr p))
           (end_list)
         )
         (action_tile
           "accept"
           "(foreach p (mapcar 'vla-get-PropertyName lst)
           (if (assoc p pop)
           (setq val (nth (atoi (get_tile p)) (cdr (assoc p pop))))
           (setq val (get_tile p)))
           (if (and val (/= val \"\") (/= val \"*\"))
           (setq ret (cons (cons p val) ret))))
           (setq fuzz (mapcar (function (lambda (x)
           (cons x (get_tile (strcat x \"_fuzz\"))))) fuzz))
           (and (not ret) (setq ret T))
           (setq sel (get_tile \"selset\"))
           (done_dialog)"
         )
         (action_tile "cancel" "(setq ret nil)")
         (start_dialog)
         (unload_dialog dcl_id)
         (vl-file-delete tmp)
         ret
       )

       ;;----------------------------------------------------;;

       (setq dz (getvar 'dimzin))
       (setvar 'dimzin 8)
       (and
         (or
           (and
     	(setq ss (cadr (ssgetfirst)))
     	(= 1 (sslength ss))
     	(setq ent (ssname ss 0))
     	(sssetfirst nil nil)
           )
           (and
     	(sssetfirst nil nil)
     	(setq ent (car (entsel)))
           )
         )
         (setq blk (vlax-ename->vla-object ent))
         (= (vla-get-ObjectName blk) "AcDbBlockReference")
         (= (vla-get-IsDynamicBlock blk) :vlax-true)
         (not (redraw ent 3))
         (setq name (vla-get-EffectiveName blk))
         (or
           (DynBlkPropValue (vlax-invoke blk 'getDynamicBlockProperties))
           (redraw ent 4)
         )
         (not (redraw ent 4))
         (if	(= sel "all")
           (ssget "_X"
     	     (list '(0 . "INSERT") (cons 2 (strcat name ",`*U*")))
           )
           (ssget (list '(0 . "INSERT") (cons 2 (strcat name ",`*U*")))
           )
         )
         (setq res (ssadd))
         (vlax-for b	(setq ss (vla-get-ActiveSelectionSet *acdoc*))
           (if
     	(and
     	  (= (vla-get-EffectiveName b) name)
     	  (or
     	    (= ret T)
     	    ((lambda (lst)
     	       (apply
     		 '=
     		 (cons
     		   T
     		   (mapcar
     		     (function
     		       (lambda (p / n v l u f)
     			 (setq n (car p)
     			       l (assoc n lst)
     			       u (vla-get-UnitsType (caddr l))
     			 )
     			 (equal	(cond
     				  ((= 0 u) (cdr p))
     				  ((= 1 u) (angtof (cdr p)))
     				  (T (distof (cdr p)))
     				)
     				(if (= u 0)
     				  (vl-princ-to-string (cadr l))
     				  (cadr l)
     				)
     				(if (and (setq f (cdr (assoc n fuzz)))
     					 (numberp (read f))
     				    )
     				  (atof f)
     				  1e-12
     				)
     			 )
     		       )
     		     )
     		     ret
     		   )
     		 )
     	       )
     	     )
     	      (mapcar
     		(function
     		  (lambda (p / n v)
     		    (list
     		      (setq n (vla-get-PropertyName p))
     		      (vlax-get p 'Value)
     		      p
     		    )
     		  )
     		)
     		(vlax-invoke b 'getDynamicBlockProperties)
     	      )
     	    )
     	  )
     	)
     	 (ssadd (vlax-vla-object->ename b) res)
           )
         )
         (vla-delete ss)
       )
       (setvar 'dimzin dz)
       res
     )

     (defun c:ssd ()
       (sssetfirst nil (ssd))
       (princ)
     )

     Reply
4. Pete Busciglio says:

   August 13, 2013 at 3:33 PM

   How do I use this Lisp in AutoCAD Civil 3D? I’ve loaded it successfully under applications, but in the past I would type in the name of the lisp (DOUT) and it would work. What am I doing wrong?

   Reply
5. chuzzle says:

   April 10, 2015 at 12:50 PM

   Thank you for you post.
   The routine is so awesome.
   Could you please modify this to just delete objects that are completely outside of the window selection (not just the objects touching or crossing the window).
   Many thanks.

   Reply

Leave a Reply Cancel reply

Enter your comment here...

Fill in your details below or click an icon to log in:

Email (required) (Address never made public)

Name (required)

Website

You are commenting using your WordPress.com account. ( Log Out /  Change )

You are commenting using your Facebook account. ( Log Out /  Change )

Cancel

Connecting to %s

Notify me of new comments via email.

Notify me of new posts via email.

Δ
