Today’s featured routine will clean up wall intersections that are T-shaped.

- WALL-T <enter> to start

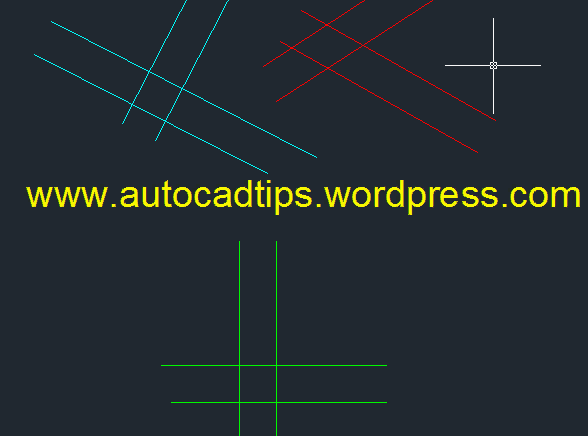

To be honest, this one is the most confusing routine of “wall clean up” routines. Just like the previous routine, this routine lets you select the objects first and then specify how the T-shape will be determined. This is done by asking the user to specify the “Lower Left leg” Shown Below:

Shown Below:

Default Function – The first pick specifies the “Lower Left Leg”

Shown Below:

Select object first and then specify the “Lower Left Leg” of the T

~enjoy

(defun c:wall-t (/ >90 @work ang dist1 dist2 dists edata eqpnt etype fuzzy get getside getslope head i merge neatt1 neatt2 neatt3 nukenz perp perps pt0 pt1 pt2 pt3 pt4 slope sort ss ssfunc temp tail wall1 wall2 walls work x y ) (setq clayer nil) (princ "\nLoading -") (setq @WORK '("\\" "|" "/" "-")) (defun WORK () ; Backspace (prompt "\010") (setq @work (append (cdr @work) (list (princ (car @work))))) ) (work) (defun NUKENZ (x) (cdr (reverse (cdr x))) ) (work) (defun NEATT1 (dist1 dist2 / x y line1 line2 pt1 pt2 ip1) (work) (cond ((cdr dist1) (setq x (cadar dist1) y (cadr (last dist1)) ) (neatt2 ; 2nd wall - line 1 (nth (cadar dist2) wall2) ; 1st wall - line 1 (nth x wall1) ; 1st wall - line 2 (nth y wall1) ; 1st wall - perpend 1 (nth (1- x) perps) ; 1st wall - perpend 2 (nth (1- y) perps) ) (neatt1 (nukenz dist1) (cdr dist2)) ) ((car dist1) (setq ; 1st line line1 (nth (cadar dist1) wall1) ; 2nd line line2 (nth (cadar dist2) wall2) ; 1st line endpoints pt1 (cadr line1) pt2 (caddr line1) ; Intersection point ip1 (inters pt1 pt2 (cadr line2) (caddr line2) nil) ) (neatt3 line1 ip1 (nth (1- (cadar dist1)) perps)) ) (T nil) ) ) (work) (defun NEATT2 (line1 line2 line3 pp2 pp3 / pt1 pt2 ip2 ip3) (work) (setq ; 1st line endpoints pt1 (cadr line1) pt2 (caddr line1) ; Intersection points ip2 (inters pt1 pt2 (cadr line2) (caddr line2) nil) ip3 (inters pt1 pt2 (cadr line3) (caddr line3) nil) ) (command ".BREAK" (car line1) ip2 ip3) (neatt3 line2 ip2 pp2) (neatt3 line3 ip3 pp3) ) (work) (defun NEATT3 (line1 ip1 pp1 / edata group ang1 ang2) (work) (setq pt1 (cadr line1) pt2 (caddr line1) ang1 (angle pp1 ip1) ang2 (angle pt1 pt2) group (if (eqpnt (polar ip1 ang1 1.0) (polar ip1 ang2 1.0)) 11 10) edata (entget (car line1)) ) (entmod (subst (cons group ip1) (assoc group edata) edata)) ) (work) (defun GETSIDE (pt0 pp1 pp2 / temp) ; Get delta angle (setq temp (- (angle pt0 pp2) (angle pt0 pp1))) ; Figure postive or negative angle direction (if ((if (minusp temp) < >) (abs temp) pi) nil T) ) (work) (defun FUZZY (x y) (< (abs (- x y)) 1.0e-6) ) (work) (defun EQPNT (p1 p2) (< (distance p1 p2) 1.0e-6) ) (work) (defun GET (key alist) (if (atom key) (cdr (assoc key alist)) (mapcar '(lambda (x) (cdr (assoc x alist))) key) ) ) (work) (defun SORT (x) (work) (cond ((null (cdr x)) x) (T (merge (sort (head x (1- (length x)))) (sort (tail x (1- (length x)))) ) ) ) ) (work) (defun MERGE (a b) (work) (cond ((null a) b) ((null b) a) ((< (caar a) (caar b)) (cons (car a) (merge (cdr a) b)) ) (t (cons (car b) (merge a (cdr b)))) ) ) (work) (defun HEAD (l n) (cond ((minusp n) nil) (T (cons (car l) (head (cdr l) (- n 2)))) ) ) (work) (defun TAIL (l n) (cond ((minusp n) l) (T (tail (cdr l) (- n 2))) ) ) (work) (defun GETSLOPE (pt1 pt2 / x) ; Vertical? (if (fuzzy (setq x (abs (- (car pt1) (car pt2)))) 0.0) ; Yes, return NIL nil ; No, compute slope (rtos (/ (abs (- (cadr pt1) (cadr pt2))) x) 2 4) ) ) (work) (defun ETYPE (edata match) (member (get 0 edata) (if (listp match) match (list match))) ) (work) (defun SSFUNC (ss func / i ename) (setq i -1) (while (setq ename (ssname ss (setq i (1+ i)))) (apply func nil) ) ) (work) (defun PERP (pt0 pt1 pt2) (inters pt1 pt2 pt0 (polar pt0 (+ (angle pt1 pt2) >90) 1.0) nil) ) (setq >90 (/ pi 2)) (setvar "CmdEcho" 0) (setvar "BlipMode" 0) (princ "\rLoaded. ") (while (progn (initget "Select") (setq pt0 (getpoint "\nSelect objects/<First corner>: ")) ) (setq dists nil perps nil walls nil ) (cond ((eq (type pt0) 'LIST) (initget 33) (setq pt1 (getcorner pt0 "\nOther corner: ") ss (ssget "C" pt0 pt1) ) ) (T (while (progn (princ "\nSelect objects: ") (command ".SELECT" "Au" pause) (not (setq ss (ssget "P"))) ) (print "No objects selected, try again.") ) (initget 1) (setq pt0 (getpoint "\nPoint to left of 'leg' wall: ")) ) ) (princ "\nWorking ") (command ".UNDO" "Group") (ssfunc ss '(lambda () (work) (setq edata (entget ename)) ; Issa LINE entity, fall thru (if (etype edata "LINE") (setq ; Get relevant groups edata (get '(-1 10 11) edata) slope (getslope (cadr edata) (caddr edata)) walls ; Does this slope already exist in walls list (if (setq temp (assoc slope walls)) ; Yes, add new line info to assoc group (subst (append temp (list edata)) temp walls) ; Nope, add new assoc group w/line info (cons (cons slope (list edata)) walls) ) ) ) ) ) (cond ((< (length walls) 2) (princ "\rerror: Use MEND to join colinear walls.") ) ((> (length walls) 2) (princ "\rerror: Only two walls may be cleaned.") ) ; Quick way to compare numbers of lines per wall ((not (apply '= (mapcar 'length walls))) (princ "\rerror: Walls have unequal number of lines.") ) (T ;------------------------------- ; Create List of Perpendiculars ;------------------------------- (setq perps (mapcar '(lambda (x) (work) (mapcar '(lambda (y) (work) (perp pt0 (cadr y) (caddr y)) ) (cdr x) ) ) walls ) ) ;-------------------------- ; Create List of Distances ;-------------------------- (setq dists (mapcar '(lambda (x) (work) (setq i 0) (mapcar '(lambda (y) (work) ; Create list of distances (with pointers to WALLS) (list ; Compute distances (distance pt0 y) ; Key (setq i (1+ i)) ) ) x ) ) ; List of perpendicular points perps ) ) ; Sort distance index (setq dists (mapcar 'sort dists)) (work) (cond ; Determine acute angle ((getside pt0 (caar perps) (caadr perps)) (setq perps (car perps) wall1 (car walls) wall2 (cadr walls) dist1 (car dists) dist2 (cadr dists) ) ) (T (setq perps (cadr perps) wall1 (cadr walls) wall2 (car walls) dist1 (cadr dists) dist2 (car dists) ) ) ) (work) ; Ensure proper intersection specification (setq line1 (cadr wall1) line2 (cadr wall2) pt1 (cadr line1) pt2 (caddr line1) pt3 (cadr line2) pt4 (caddr line2) ang (angle pt1 pt2) pt0 (inters pt1 pt2 pt3 pt4 nil) ) (cond ((inters pt3 pt4 pt0 (polar pt0 ang 1.0)) ; Clean intersections (neatt1 dist1 dist2) (princ "\rComplete.") ) (T (princ "\rerror: Unable to cleanup specified intersection.") ) ) ) ) (command ".UNDO" "End") ) ;---------------------------- ; Restore enviroment, memory ;---------------------------- (princ) ; ----< End Of File >---- ) (princ)
