AutoLISP: Edit Block with .dcl (dialog box)

Posted on November 3, 2011 by AutoCAD Tips

The very first thing that I must say is that there are 2 files for this tool to work 1) .lsp file 2) .dcl file. YOU MUST SAVE THE .dcl FILE IN THE SAME MANNER AS YOU WOULD A .lsp FILE EXCEPT THAT YOU SAVE IT WITH THE FILE EXTENSION .dcl

This routine comes in handy when I come across blocks who say that their properties are “bylayer” yet they show as another color. That is all that I have used this routine for, yet it seems that there are other handy functions. Try them out and let post your findings in the comments section below.

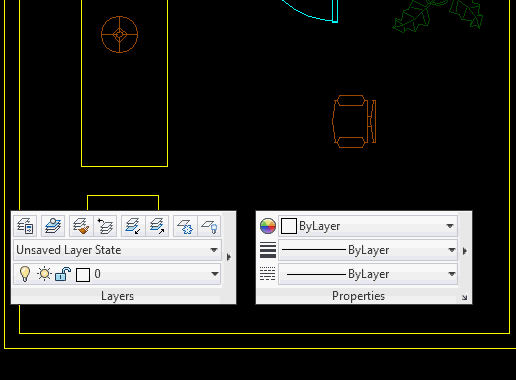

In the animation below: There are a couple of those stubborn blocks that even when selected and placed on another layer, they simply wont display the correct color. that’s where this routine comes in.

Note: this routine is made by Gilles Chanteau and was originally written in French. I simply used Google Translate to translate some of the prompts…

Here’s how:

  • EDITBLOCK <enter>
  • Click the “Selection” button from the dialog
  • Select the blocks whose color you want to change. You only need to select one of each block. After you have selected a block, any other instances of that block in the drawing will be updated as well.
  • Back in the dialog box, Select “Color”
  • Then select “Byblock”
  • Then click OK

Save this file with the LISP (.lsp) extension “Edit_Bloc.lsp


;;; Edit_bloc - Gilles Chanteau - version 3.6 - 04/05/07
;;;
;;; Redefines the blocks after modifying the properties of their components.
;;;
;;; The changes affect :
;;; - either all blocks in the collection (or not inserted)
;;; - either all blocks that are inserted
;;; - a selection of blocks ??in the drawing.
;;;
;;; It is possible to :
;;; - change the global scale
;;; - change the insertion unit (versions after ACAD 2005)
;;; - put objects within blocks of the layer of choice
;;; - change the color, line type, line thickness and style
;;;   plot (STB only) components ByBlock or ByLayer.
;;;
;;; The component blocks of nested blocks are processed.
;;; Blocks inserted in the drawing are updated according to
;;; the changes made.
;;;
;;; Parameters and properties of dynamic blocks are not taken
;;; into account by the scale changes, a dialog box asks for
;;; confirmation or invalidation changes across the block.

(vl-load-com)

(defun c:edit_bloc (/
		    ;; Functions
		    e_b_err edit_prop	    scl_upd att_upd sub_upd
		    edit_bl
		    ;; Variables
		    AcDoc   dcl_id  loop    u_lst   l_lst   lt_lst
		    lw_lst  lay	    lay-p   col	    col-p   tl
		    tl-p    tl_n    el	    el-p    el_n    plt
		    plt-p   plt_n   e_scl   fact    unt	    i_unt
		    ss	    w	    h	    dis	    ind	    rgb
		    cnm	    tbl	    all	    sel
		   )


;;;******************************************************************* ;;;

  ;; Redefinition of *error*

  (defun e_b_err (msg)
    (if	(or
	  (= msg "Function Canceled")
	  (= msg "quit / exit")
	)
      (princ)
      (princ (strcat "\nError: " msg))
    )
    (vla-endundomark
      (vla-get-ActiveDocument (vlax-get-acad-object))
    )
    (setq *error* m:err
	  m:err	nil
    )
    (princ)
  )

;;;******************************************************************* ;;;

  (defun alert_bloc (name / dcl_id)
    (setq dcl_id (load_dialog "Edit_bloc.dcl"))
    (if	(not (new_dialog "alert_bloc" dcl_id))
      (exit)
    )
    (set_tile "txt" name)
    (action_tile
      "mod"
      (strcat
	"(if (= \"1\" $value)"
	"(setq e_scl T)"
	"(setq e_scl nil))"
      )
    )
    (action_tile
      "anl"
      (strcat
	"(if (= \"1\" $value)"
	"(setq e_scl nil)"
	"(setq e_scl T))"
      )
    )
    (action_tile "accept" "(done_dialog)")
    (start_dialog)
    (unload_dialog dcl_id)
  )

;;;******************************************************************* ;;;

  ;; Modifying the properties of the components of the block

  (defun edit_prop (ent / acc)
    (if	lay-p
      (vla-put-Layer ent (nth lay l_lst))
    )
    (if	col-p
      (if (< (atoi (substr (getvar "ACADVER") 1 2)) 19)
	(vla-put-Color ent (cdar col))
	(progn
	  (setq	acc (vla-getInterfaceObject
		      (vlax-get-acad-object)
		      (strcat "AutoCAD.AcCmColor."
			      (substr (getvar "acadver") 1 2)
		      )
		    )
	  )
	  (cond
	    ((assoc 430 col)
	     (vla-setNames
	       acc
	       (substr cnm (+ 2 (vl-string-position 36 cnm)))
	       (substr cnm 1 (vl-string-position 36 cnm))
	     )
	     (vla-setRGB
	       acc
	       (lsh rgb -16)
	       (lsh (lsh rgb 16) -24)
	       (lsh (lsh rgb 24) -24)
	     )
	    )
	    ((assoc 420 col)
	     (vla-setRGB
	       acc
	       (lsh rgb -16)
	       (lsh (lsh rgb 16) -24)
	       (lsh (lsh rgb 24) -24)
	     )
	    )
	    (T
	     (vla-put-ColorIndex acc ind)
	    )
	  )
	  (vla-put-TrueColor ent acc)
	)
      )
    )
    (if	tl-p
      (vla-put-LineType
	ent
	(nth tl
	     (subst "ByLayer"
		    "DuCalque"
		    (subst "ByBlock" "DuBloc" lt_lst)
	     )
	)
      )
    )
    (if	el-p
      (vla-put-LineWeight
	ent
	(nth el
	     '(-1  -2  -3  0   5   9   13  15  18  20  25  30  35  40
	       45  50  53  60  70  80  90  100 106 120 140 158 200 211
	      )
	)
      )
    )
    (if	plt
      (if (= 1 plt_n)
	(vla-put-PlotStyleName ent "ByBlock")
	(vla-put-PlotStyleName ent "ByLayer")
      )
    )
  )

;;;******************************************************************* ;;;

  ;; Update attributes

  (defun att_upd (obj / att_lst)
    (if	(= :vlax-true (vla-get-HasAttributes obj))
      (if
	(listp (setq att_lst (vl-catch-all-apply
			       'vlax-invoke
			       (list obj 'getAttributes)
			     )
	       )
	)
	 (mapcar
	   '(lambda (x)
	      (if (and e_scl (/= fact 1.0))
		(vla-ScaleEntity
		  x
		  (vla-get-InsertionPoint obj)
		  fact
		)
	      )
	      (edit_prop x)
	    )
	   att_lst
	 )
      )
    )
  )


;;;******************************************************************* ;;;

  ;; Update the scale if unit changed

  (defun scl_upd (obj)
    (if	(and unt
	     (/= unt 0)
	     (/= i_unt unt)
	     (/= i_unt 0)
	)
      (vla-ScaleEntity
	obj
	(vla-get-InsertionPoint obj)
	(cvunit	1
		(nth unt u_lst)
		(nth i_unt u_lst)
	)
      )
    )
  )

;;;******************************************************************* ;;;

  ;; Update blocks composing of nested blocks

  (defun sub_upd (obj blc / org ins)
    (if	(and e_scl (/= fact 1.0))
      (progn
	(setq org (vlax-get blc 'origin)
	      ins (vlax-get ent 'InsertionPoint)
	)
	(vla-put-InsertionPoint
	  obj
	  (vlax-3d-point
	    (mapcar '+
		    org
		    (mapcar '(lambda (x)
			       (* x fact)
			     )
			    (mapcar '- ins org)
		    )
	    )
	  )
	)
      )
    )
    (edit_prop obj)
    (att_upd obj)
  )

;;;******************************************************************* ;;;

  ;; Editing blocks

  (defun edit_bl (/ n obj lst n_lst name bloc i_unt nb)
    ;; Unlocking all layers
    (vlax-for clq (vla-get-Layers AcDoc)
      (if (= :vlax-true
	     (vla-get-lock clq)
	  )
	(progn
	  (vla-put-lock clq :vlax-false)
	  (setq clq_lst (cons clq clq_lst))
	)
      )
    )
    ;; Creating the list of blocks to edit
    (if	ss
      ;; If "Select" or "All inserted blocks"
      (progn
	(repeat	(setq n (sslength ss))
	  (setq
	    obj	(vlax-ename->vla-object (ssname ss (setq n (1- n))))
	  )
	  (if (vlax-property-available-p obj 'EffectiveName)
	    (setq name (vla-get-EffectiveName obj))
	    (setq name (vla-get-Name obj))
	  )
	  (if
	    (and
	      (not (member name lst))
	      (= :vlax-false
		 (vla-get-isXref
		   (vla-item (vla-get-Blocks AcDoc) name)
		 )
	      )
	    )
	     (setq lst (cons name lst))
	  )
	)
	;; Adding anonymous dynamic blocks
	(and
	  (setq ss (ssget "_X" '((0 . "INSERT") (2 . "`*U*"))))
	  (repeat (setq n (sslength ss))
	    (setq
	      obj
	       (vlax-ename->vla-object (ssname ss (setq n (1- n))))
	    )
	    (if	(and (member (vla-get-EffectiveName obj) lst)
		     (not (member (vla-get-Name obj) lst))
		)
	      (setq lst (cons (vla-get-Name obj) lst))
	    )
	  )
	)
	;; Adding blocks composing of nested blocks to the list
	(setq n_lst 0)
	(while (setq name (nth n_lst lst))
	  (setq bloc (vla-item (vla-get-blocks acDoc) name))
	  (vlax-for ent	bloc
	    (if	(and (= (vla-get-ObjectName ent) "AcDbBlockReference")
		     (not (member (vla-get-name ent) lst))
		)
	      (setq
		lst (reverse (cons (vla-get-Name ent) (reverse lst)))
	      )
	    )
	  )
	  (setq n_lst (1+ n_lst))
	)
      )
      ;; If "whole collection"
      (vlax-for	bl (vla-get-blocks AcDoc)
	(if (and (= :vlax-false (vla-get-isLayout bl))
		 (= :vlax-false (vla-get-isXref bl))
	    )
	  (setq lst (cons (vla-get-name bl) lst))
	)
      )
    )
    ;; Editing blocks
    (mapcar
      '(lambda (name)
	 (setq bloc (vla-item (vla-get-blocks AcDoc) name))
	 (if (and e_scl
		  (< 16.1 (read (substr (getvar "ACADVER") 1 4)));<<<--- ACAD version Check
		  (= (vla-get-IsDynamicBlock bloc) :vlax-true)
		  (/= fact 1.0)
	     )
	   (progn
	     (setq e_scl nil)
	     (alert_bloc name)
	   )
	 )
	 (vlax-for ent bloc
	   (if (/= (vla-get-ObjectName ent) "AcDbZombieEntity")
	     (if (/= (vla-get-ObjectName ent) "AcDbBlockReference")
	       (progn
		 (if (and e_scl (/= fact 1.0)) ;_ Echelle
		   (vla-ScaleEntity ent (vla-get-origin bloc) fact)
		 )
		 (edit_prop ent)
	       )
	       (sub_upd ent bloc)
	     )
	   )
	 )
	 (if (< 16.1 (read (substr (getvar "acadver") 1 4))) ;_ Units
	   (if (/= (setq i_unt (vla-get-units bloc)) unt)
	     (vla-put-Units bloc unt)
	   )
	 )
	 ;; Update inserted blocks (attributes and units)
	 (setq ss (ssget "_X" (list '(0 . "INSERT") (cons 2 name))))
	 (if ss
	   (repeat (setq n (sslength ss))
	     (setq obj (vlax-ename->vla-object
			 (ssname ss (setq n (1- n)))
		       )
	     )
	     (att_upd obj)
	     (scl_upd obj)
	   )
	 )
       )
      lst
    )
    ;; Update blocks composing of nested blocks inserted unselected
    (setq ss
	   (ssget "_X"
		  (cons	'(0 . "INSERT")
			(mapcar '(lambda (x) (cons 2 (strcat "~" x))) lst)
		  )
	   )
    )
    (if	ss
      (repeat (setq nb (sslength ss))
	(setq obj  (vlax-ename->vla-object (ssname ss (setq nb (1- nb))))
	      name (vla-get-Name obj)
	      bloc (vla-item (vla-get-blocks AcDoc) name)
	)
	(vlax-for ent bloc
	  (if (and (= (vla-get-ObjectName ent) "AcDbBlockReference")
		   (member (vla-get-Name ent) lst)
	      )
	    (progn
	      (sub_upd ent bloc)
	      (scl_upd ent)
	    )
	  )
	)
      )
    )
    ;; Unlock of keyed layers
    (if	clq_lst
      (mapcar '(lambda (x)
		 (vla-put-lock x :vlax-true)
	       )
	      clq_lst
      )
    )
    (vla-Regen AcDoc acAllViewports)
  )

;;;******************************************************************* ;;;

  ;; Dialog Box

  (setq	AcDoc	(vla-get-ActiveDocument (vlax-get-acad-object))
	m:err	*error*
	*error*	e_b_err
  )
  (vla-StartUndoMark AcDoc)
  (setq	dcl_id (load_dialog "Edit_bloc.dcl")
	loop   2
	u_lst  (list "Unitless"        "Inches"
		     "Feet"	       "Miles"
		     "millimeters"     "Centimeters"
		     "Mètres"	       "Kilometers"
		     "Micropouces"     "Miles"
		     "Yards"	       "Angströms"
		     "Nanometers"      "Microns"
		     "Decimetres"      "Decameters"
		     "Hectometers"     "Gigameters"
		     "astronomical units"
		     "Parsecs"
		    )
  )
  (vlax-for l (vla-get-Layers AcDoc)
    (or	(wcmatch (vla-get-Name l) "*|*")
	(setq l_lst (cons (vla-get-Name l) l_lst))
    )
  )
  (setq l_lst (acad_strlsort l_lst))
  (vlax-for lt (vla-get-LineTypes AcDoc)
    (setq lt_lst (cons (vla-get-Name lt) lt_lst))
  )
  (setq	lt_lst (reverse	(subst "DuBloc"
			       "ByBlock"
			       (subst "DuCalque" "ByLayer" lt_lst)
			)
	       )
  )
  (setq	lw_lst '("ByLayer"     "ByBlock"     "Default"
		 "0.00 mm"     "0.05 mm"     "0.09 mm"
		 "0.13 mm"     "0.15 mm"     "0.18 mm"
		 "0.20 mm"     "0.25 mm"     "0.30 mm"
		 "0.35 mm"     "0.40 mm"     "0.45 mm"
		 "0.50 mm"     "0.53 mm"     "0.60 mm"
		 "0.70 mm"     "0.80 mm"     "0.90 mm"
		 "1.00 mm"     "1.06 mm"     "1.20 mm"
		 "1.40 mm"     "1.58 mm"     "2.00 mm"
		 "2.11 mm"
		)
  )
  (while (<= 2 loop)
    (if	(not (new_dialog "edit_bloc_3" dcl_id))
      (exit)
    )
    (start_list "unt")
    (mapcar 'add_list u_lst)
    (end_list)
    (start_list "lay_l")
    (mapcar 'add_list l_lst)
    (end_list)
    (start_list "tl_l")
    (mapcar 'add_list lt_lst)
    (end_list)
    (start_list "el_l")
    (mapcar 'add_list lw_lst)
    (end_list)
    (setq w (dimx_tile "i_col")
	  h (dimy_tile "i_col")
    )
    (or dis (setq dis 0))
    (start_image "i_col")
    (fill_image 0 0 w h dis)
    (vector_image 0 0 w 0 -18)
    (vector_image 0 0 0 h -18)
    (vector_image w h w 0 -18)
    (vector_image w h 0 h -18)
    (end_image)
    (or lay (setq lay 0))
    (or col (setq col '((62 . 0))))
    (or tl (setq tl 0))
    (or el (setq el 1))
    (or plt (setq plt 0))
    (setq ind (cdr (assoc 62 col))
	  rgb (cdr (assoc 420 col))
	  cnm (cdr (assoc 430 col))
    )
    (and tbl (set_tile "tbl" "1"))
    (and all (set_tile "all" "1"))
    (and sel (set_tile "sel" "1"))
    (set_tile "t_col"
	      (cond
		(cnm
		 (substr cnm (+ 2 (vl-string-position 36 cnm)))
		)
		(rgb
		 (strcat (itoa (lsh rgb -16))
			 ","
			 (itoa (lsh (lsh rgb 16) -24))
			 ","
			 (itoa (lsh (lsh rgb 24) -24))
		 )
		)
		(T
		 (cond
		   ((= ind 256) "ByLayer")
		   ((= ind 0) "ByBlock")
		   ((= ind 1) "Red")
		   ((= ind 2) "Yellow")
		   ((= ind 3) "Green")
		   ((= ind 4) "Cyan")
		   ((= ind 5) "Blue")
		   ((= ind 6) "Magenta")
		   ((= ind 7) "White")
		   ((strcat "Color " (itoa ind)))
		 )
		)
	      )
    )
    (cond
      ((< 16.1 (read (substr (getvar "acadver") 1 4)))
       (mode_tile "unt" 0)
       (if (not unt)
	 (setq unt (getvar "INSUNITS"))
       )
      )
      (T
       (mode_tile "unt" 1)
       (setq unt nil)
      )
    )
    (if	unt
      (set_tile "unt" (itoa unt))
      (set_tile "unt" (itoa (getvar "INSUNITS")))
    )
    (if	(not (or ss tbl))
      (mode_tile "accept" 1)
    )
    (if	(zerop (getvar "PSTYLEMODE"))
      (mode_tile "plt" 0)
      (progn
	(mode_tile "plt" 1)
	(mode_tile "plt_db" 1)
	(mode_tile "plt_dc" 1)
	(setq plt nil)
      )
    )
    (if	e_scl
      (progn
	(set_tile "scl" "1")
	(mode_tile "fact" 0)
      )
      (progn
	(set_tile "scl" "0")
	(mode_tile "fact" 1)
      )
    )
    (if	fact
      (set_tile "fact" (rtos fact))
      (setq fact 1.0)
    )
    (if	lay-p
      (progn
	(mode_tile "lay_l" 0)
	(set_tile "lay" "1")
      )
      (progn
	(mode_tile "lay_l" 1)
	(set_tile "lay" "0")
      )
    )
    (set_tile "lay_l" (itoa lay))
    (if	(equal col '((62 . 0)))
      (set_tile "col_db" "1")
      (set_tile "col_db" "0")
    )
    (if	col-p
      (progn
	(set_tile "col" "1")
	(mode_tile "col_db" 0)
	(mode_tile "col_s" 0)
      )
      (progn
	(set_tile "col" "0")
	(mode_tile "col_db" 1)
	(mode_tile "col_s" 1)
      )
    )
    (if	tl-p
      (progn
	(mode_tile "tl_l" 0)
	(set_tile "tl" "1")
      )
      (progn
	(mode_tile "tl_l" 1)
	(set_tile "tl" "0")
      )
    )
    (set_tile "tl_l" (itoa tl))
    (if	el-p
      (progn
	(mode_tile "el_l" 0)
	(set_tile "el" "1")
      )
      (progn
	(mode_tile "el_l" 1)
	(set_tile "el" "0")
      )
    )
    (set_tile "el_l" (itoa el))
    (if	plt-p
      (progn
	(set_tile "plt" "1")
	(mode_tile "plt_r" 0)
      )
      (progn
	(set_tile "plt" "0")
	(mode_tile "plt_r" 1)
      )
    )
    (set_tile "plt_db" (itoa lay))
    (action_tile
      "tbl"
      "(if (= \"1\" $value)
	(progn (setq ss nil
	tbl T all nil sel nil)
	(mode_tile \"ss\" 1)
	(mode_tile \"accept\" 0)))"
    )
    (action_tile
      "all"
      "(if (= \"1\" $value)
	(progn
	(setq ss (ssget \"_X\" '((0 . \"INSERT\")))
	all T sel nil tbl nil)
	(mode_tile \"ss\" 1)
	(mode_tile \"accept\" 0)))"
    )
    (action_tile
      "sel"
      "(if (= \"1\" $value)
	(progn (mode_tile \"ss\" 0)
        (setq sel T all nil tbl nil)
	(mode_tile \"ss\" 2)
	(mode_tile \"accept\" 1))
	(mode_tile \"accept\" 0))"
    )
    (action_tile
      "ss"
      "(progn (done_dialog 3) (mode_tile \"accept\" 0))"
    )
    (action_tile
      "scl"
      "(if (= \"1\" $value)
      (progn (setq e_scl T)
      (mode_tile \"fact\" 0))
      (progn (setq e_scl nil)
      (mode_tile \"fact\" 1)))"
    )
    (action_tile
      "fact"
      "(if (< 0 (atof $value))
	(setq fact (atof $value))
	(progn (alert \"Invalid Input\")
	(mode_tile \"fact\" 2)))"
    )
    (action_tile "unt" "(setq unt (atoi $value))")
    (action_tile
      "lay"
      "(if (= \"1\" $value)
	(progn
	(setq lay-p T)
	(setq lay (atoi (get_tile \"lay_l\")))
	(mode_tile \"lay_l\" 0))
	(progn (setq lay-p nil)
	(mode_tile \"lay_l\" 1)))"
    )
    (action_tile "lay_l" "(setq lay (atoi $value))")
    (action_tile
      "col"
      "(if (= \"1\" $value)
	(progn
	(setq col-p T)
	(mode_tile \"col_db\" 0)
	(mode_tile \"col_s\" 0))
	(progn
	(mode_tile \"col_db\" 1)
	(mode_tile \"col_s\" 1)))"
    )
    (action_tile
      "col_db"
      "(if (= \"1\" $value)
      (progn
      (setq col '((62 . 0)) dis 0)
      (set_tile\"col_db\" \"1\")
      (done_dialog 5))
      (done_dialog 4))"
    )
    (action_tile "col_s" "(done_dialog 4)")
    (action_tile
      "tl"
      "(if (= \"1\" $value)
	(progn
	(setq tl-p T)
	(setq tl (atoi (get_tile \"tl_l\")))
	(mode_tile \"tl_l\" 0))
	(progn (setq tl-p nil)
	(mode_tile \"tl_l\" 1)))"
    )
    (action_tile "tl_l" "(setq tl (atoi $value))")
    (action_tile
      "el"
      "(if (= \"1\" $value)
	(progn
	(setq el-p T)
	(setq el (atoi (get_tile \"el_l\")))
	(mode_tile \"el_l\" 0))
	(progn (setq el-p nil)
	(mode_tile \"el_l\" 1)))"
    )
    (action_tile "el_l" "(setq el (atoi $value))")
    (action_tile
      "plt"
      "(if (= \"1\" $value)
	(progn
	(setq plt T)
	(setq plt_n (atoi (get_tile \"plt_db\")))
	(mode_tile \"plt_r\" 0))
	(progn (setq plt nil)
	(mode_tile \"plt_r\" 1)))"
    )
    (action_tile
      "plt_r"
      "(setq plt_n (atoi (get_tile \"plt_db\")))"
    )
    (action_tile "accept" "(done_dialog 1)")
    (setq loop (start_dialog))
    (cond
      ((= loop 3)
       (or
	 (and (= (getvar "PICKFIRST") 1)
	      (setq ss (ssget "_I" '((0 . "INSERT"))))
	 )
	 (setq ss (ssget '((0 . "INSERT"))))
       )
      )
      ((= loop 4)
       (if (< (atoi (substr (getvar "ACADVER") 1 2)) 19)
	 (and (setq col (acad_colordlg 0))
	      (setq col (list (cons 62 col)))
	 )
	 (setq col (acad_truecolordlg '(62 . 0)))
       )
       (setq dis (cdr (assoc 62 col)))
      )
      ((= loop 1)
       (edit_bl)
      )
    )
  )
  (unload_dialog dcl_id)
  (vla-endundomark AcDoc)
  (setq	*error*	m:err
	m:err nil
  )
  (princ)
)

Save the below code as Edit_Bloc.dcl

edit_bloc_3:dialog
{
    label="Redefine blocks";
    :boxed_row
    {
        label="Select blocks";
        :radio_column
        {
            :radio_button
            {
                label="Select All";
                key="tbl";
                fixed_width=true;
                allow_accept=true;
            }
            :radio_button
            {
                label="All blocks inserted";
                key="all";
                fixed_width=true;
                allow_accept=true;
            }
            :radio_button
            {
                label="Selection";
                key="sel";
                value="1";
                fixed_width=true;
            }
        }
        :button
        {
            label=" >> ";
            key="ss";
            fixed_width=true;
            alignment=bottom;
            allow_accept=true;
        }
    }
    :boxed_column
    {
        label="Properties to modify";
        :row
        {
            :toggle
            {
                label= "global scale";
                key="scl";
                value="0";
            }
            :edit_box
            {
                key="fact";
                edit_width=8;
                value="1.0";
                allow_accept=true;
            }
        }
        spacer;
        :popup_list
        {
            label="Units ";
            key="unt";
            edit_width=16;
        }
        spacer;
        :row
        {
            :column
            {
                :toggle
                {
                    label="Layer";
                    key="lay";
                    fixed_width=true;
                    allow_accept=true;
                }
                spacer_1;
                :toggle
                {
                    label="Color";
                    key="col";
                    fixed_width=true;
                    allow_accept=true;
                }
                spacer_1;
                :toggle
                {
                    label="Linetype";
                    key="tl";
                    fixed_width=true;
                    allow_accept=true;
                }
                :toggle
                {
                    label="Lineweight";
                    key="el";
                    fixed_width=true;
                    allow_accept=true;
                }
                :toggle
                {
                    label="Plot Style";
                    key="plt";
                    fixed_width=true;
                    allow_accept=true;
                }
            }
            :column
            {
                :popup_list
                {
                    key="lay_l";
                    alignment=right;
                }
                spacer_1;
                :column
                {
                    :row
                    {
                        :image
                        {
                            key="i_col";
                            width=1;
                            height=1;
                            aspect_ratio=1.0;
                        }
                        :text
                        {
                            key="t_col";
                            width=20;
                        }
                    }
                    :row
                    {
                        :toggle
                        {
                            label="ByBlock";
                            key="col_db";
                            value="1";
                        }
                        :button
                        {
                            label="Other...";
                            key="col_s";
                            fixed_width=true;
                            alignment=right;
                        }
                    }
                }
                :popup_list
                {
                    key="tl_l";
                    alignment=right;
                }
                :popup_list
                {
                    key="el_l";
                    alignment=right;
                }
                :radio_row
                {
                    key="plt_r";
                    :radio_button
                    {
                        label="ByBlock";
                        key="plt_db";
                        value="1";
                    }
                    :radio_button
                    {
                        label="ByLayer";
                        key="plt_dc";
                    }
                }
            }
        }
    }
    spacer;
    ok_cancel;
}
alert_bloc:dialog
{
    label="Scale dynamic blocks";
    :paragraph
    {
        :text_part
        {
            value="The change of scale does not affect";
        }
        :text_part
        {
            value="the settings for dynamic blocks.";
        }
    }
    spacer;
    :boxed_column
    {
        label="Change the scale of the block";
        :text
        {
            key="txt";
        }
        :radio_row
        {
            :radio_button
            {
                label="Oui";
                mnemonic="O";
                key="mod";
            }
            :radio_button
            {
                label="Non";
                mnemonic="N";
                key="anl";
                value="1";
            }
        }
    }
    ok_only;
}
Advertisement

About AutoCAD Tips

This blog serves as a knowledge base for myself (and anyone else) so that I can reference tips & tricks that I have learned and also refer others to it as well. I hope that this blog helps you learn at least one tip to make your drafting/design experience better.
This entry was posted in AutoLISP, Blocks, Layers, Modifying. Bookmark the permalink.

8 Responses to AutoLISP: Edit Block with .dcl (dialog box)

  1. thuan says:
    March 11, 2014 at 7:17 PM

    This is great! There are many useful functions for block!
    I’d like to add 1 button “Get layer” from drawing beside layer box, please!

    Reply
  2. thuan says:
    March 11, 2014 at 7:26 PM

    And please create schedule of blocks will be applied, for example [List…] button.

    Reply
  3. hans says:
    September 5, 2014 at 5:50 AM

    I would like to build in ‘transparancy’ OBJECT BYBLOCK.. that should not be so difficult

    Reply
  4. Duke Nukem 3D says:
    July 10, 2015 at 6:38 AM

    This is exactly what I was looking for, unfortunately doesn’t work for me. I get this error when I load both files ……….. ; error: malformed list on input
    When I type “EditBlock” or “Edit_Block” the command is unknown.
    I’m using AutoCAD Civil 3D 2014

    Reply
  5. kent says:
    November 4, 2016 at 9:46 PM

    Hi, Thanks for writing such a good lisp. However, there is nothing happen after I input the command “edit_bloc”, I am also using autocad 2014.

    Reply
  6. Michael H says:
    September 4, 2018 at 9:13 AM

    Has there been any update to this Lisp lately? I still notice some french words in the menu for some reason. Thanks.

    Reply
  7. CS says:
    June 7, 2022 at 7:21 PM

    Thank You. That is the thing that I want. Can you kindly add modify linetype scale for this?
    If also added modify transparency & thickness. This lisp become perfect.

    Reply

Leave a Reply

Fill in your details below or click an icon to log in:

Gravatar
WordPress.com Logo

You are commenting using your WordPress.com account. ( Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. ( Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. ( Log Out /  Change )

Cancel

Connecting to %s
