Sorry for not posting in a while. I now have a full time job. I get work with AutoCAD and help people with their AutoCAD problems – Which is something that I love.
Anyways – This routine is a great routine that apparently has been pieced together from other routines to make it work. But hey, it works… If you have ever had MTEXT that has its bounding box too wide, you now that you can double click the MTEXT object and then manually double click the “diamond” (arrows) to make the bounding box fit your text (as seen below).
But what if you have many MTEXT objects and you want to minimize these boxes? That is where this routine comes in very handy. You can easily select multiple MTEXT objects and this will do it all for you.

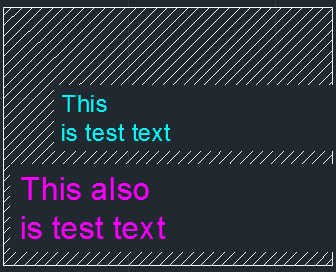

This is especially helpful for when you have the Text Background fill turned on and your MTEXT is over other objects (like a hatch). If your bounding box is too large, the text background fill will be as large as the bounding box. And as seen below, with this scenario, you can really see the benefit.
Here’s how:
- TXTBOXWIDTH <enter> to start
- Select MTEXT objects
- <enter> when finished selecting
~enjoy
(defun mip-mtext-wrap-BB (en / el SetHandles CheckHandles sclst)
(vl-load-com)
;;; Argument: the ename of an mtext
;;; Shrinkwrap the bounding box of selected MText objects
;;; http://discussion.autodesk.com/forums/message.jspa?messageID=5734567
;;; ShrinkwrapMText v2a.lsp - Joe Burke - 10/13/2007 - Version 2a
;;;;;http://discussion.autodesk.com/forums/thread.jspa?threadID=448625
;;;; USE:
;;; (mip-mtext-wrap-BB (car(entsel)))
;;; !!!! AutoCAD 2010 2011 2012
;;; http://forums.autodesk.com/t5/Visual-LISP-AutoLISP-and-General/MTEXT-Column-property/m-p/2690952
;;;Need to change the column type from dynamic to not add the dxf group of 75 with 0
;;; http://www.theswamp.org/index.php?topic=28243.0
(defun GetAnnoScales (e / dict lst rewind res)
;;; Argument: the ename of an annotative object.
;;; Returns the annotative scales associated with the
;;; ename as a list of strings.
;;; Example: ("1:1" "1:16" "1:20" "1:30")
;;; Returns nil if the ename is not annotative.
;;; Can be used to test whether ename is annotative or not.
;;; Works with annotative objects: text, mtext, leader, mleader,
;;; dimension, block reference, tolerance and attribute.
;;; Based on code by Ian Bryant.
(if
(and
e
(setq dict (cdr (assoc 360 (entget e))))
(setq lst (dictsearch dict "AcDbContextDataManager"))
(setq lst
(dictsearch (cdr (assoc -1 lst)) "ACDB_ANNOTATIONSCALES")
) ;_ end of setq
(setq dict (cdr (assoc -1 lst)))
) ;_ end of and
(progn
(setq rewind t)
(while (setq lst (dictnext dict rewind))
(setq e (cdr (assoc 340 lst))
res (cons (cdr (assoc 300 (entget e))) res)
rewind nil
) ;_ end of setq
) ;_ end of while
) ;_ end of progn
) ;_ end of if
(reverse res)
) ;end
(defun CheckHandles (e / dict lst rewind nlst d42 d43 n p ptlst)
;;; Argument: the ename of annotative mtext object.
;;; Returns T if the object has only one scale or
;;; the handles for all scales are proportionally the
;;; same and all scales use the same insertion point.
(if
(and
e
(setq dict (cdr (assoc 360 (entget e))))
(setq lst (dictsearch dict "AcDbContextDataManager"))
(setq lst
(dictsearch (cdr (assoc -1 lst)) "ACDB_ANNOTATIONSCALES")
) ;_ end of setq
(setq dict (cdr (assoc -1 lst)))
) ;_ end of and
(progn
(setq rewind t)
(while (setq lst (dictnext dict rewind))
(setq nlst (cons lst nlst)
rewind nil
) ;_ end of setq
) ;_ end of while
(cond
((= 1 (length nlst)))
(t
;; lst is nil so reuse it.
(foreach x nlst
;Horizontal width. Can be zero, a null text string.
(setq d42 (cdr (assoc 42 x))
;Vertical height cannot be zero so a divide
;by zero error can't happen.
d43 (cdr (assoc 43 x))
n (/ d42 d43)
lst (cons n lst)
;Insertion point
p (cdr (assoc 11 x))
ptlst (cons p ptlst)
) ;_ end of setq
) ;_ end of foreach
(and
(vl-every '(lambda (x) (equal n x 1e-4)) lst)
(vl-every '(lambda (x) (equal p x 1e-4)) ptlst)
) ;_ end of and
)
) ;_ end of cond
) ;_ end of progn
) ;_ end of if
) ;end
(defun SetHandles (lst / oldlst charwidth ht pat)
;;; ;Argument: an entget list.
;;; ;Code 42 is the smallest width of the handles.
;;; ;If 41 is larger than 42 then the handles can be shrunk
;;; ;horizontally given a single line mtext object.
;;;
;;; ;Code 46 is the current height of the handles in 2007/2008.
;;; ;Substitute the actual height from the code 43 value.
;;;
;;; ;Used to determine number of objects modified.
(setq lst (entget (cdr(assoc -1 lst)) '("ACAD")))
;;; (setq oldlst lst)
(setq charwidth (* (cdr (assoc 42 lst)) 1.05) ;_1.035
ht (cdr (assoc 43 lst))
lst (subst (cons 41 charwidth) (assoc 41 lst) lst)
lst (subst (cons 46 ht) (assoc 46 lst) lst)
lst (if (assoc 75 lst) ;;; 75 - òèï êîëîíîê
(subst (cons 75 0) (assoc 75 0) lst)
(append lst (list(cons 75 0)))
)
) ;_ end of setq
;;;Code 46 is the current height of the handles in 2007/2008.
;;;Substitute the actual height from the code 43 value.
(if (and
(setq pat (assoc -3 lst))
(eq "ACAD" (caadr pat))
) ;_ end of and
(progn
(if (assoc 46 lst)
;;;Code 46 is the current height of the handles in 2007/2008.
;;; Remove extended data regarding height if found.
(setq pat '(-3 ("ACAD")))
(progn
(setq pat
(cons -3
(list (subst (cons 1040 ht)
(assoc 1040 (cdadr pat))
(cadr pat)
) ;_ end of subst
) ;_ end of list
) ;_ end of cons
) ;_ end of setq
) ;_ end of progn
) ;_ end of if
(setq lst (subst pat (assoc -3 lst) lst))
)
) ;_ end of if
(setq lst (entmod lst))
) ;end SetHandles
(if (= (cdr (assoc 0 (setq EL (entget en '("*"))))) "MTEXT")
(progn
(cond
((and
(setq sclst (GetAnnoScales en))
(CheckHandles en)
) ;_ end of and
(vl-cmdf "._chprop" en "" "_Annotative" "_No" "")
;(SetHandles (entget ename))
(SetHandles el)
(vl-cmdf "._chprop" en "" "_Annotative" "_Yes" "")
(foreach x sclst
(vl-cmdf "._objectscale" en "" "_Add" x "")
) ;_ end of foreach
)
((not (GetAnnoScales en))
(SetHandles el)
)
(t nil)
) ;_ end of cond
) ;_ end of progn
) ;_ end of if
) ;_ end of defun
(defun C:TxtBoxWidth (/ ss i)
(and (setq ss (ssget "_:L" '((0 . "MTEXT"))))
(repeat (setq i (sslength ss))
(mip-mtext-wrap-BB (ssname ss (setq i (1- i))))
)
(setq ss nil)
)
)
AutoCAD Tips
I am wondering just how to run the other parts of this routine besides the ‘Test1’ or otherwise called the “MTEXTBOX…” routine. Does this require separating the defun’s into separate LISP files or what?
Good catch Clinton, there is a bunch of junk in that code. None of the “junk” is harmful. It is just useless. Notice the funky comments example >>> ;| code |; What that does is comment-out out the code that is in between – kind of like end-caps…
(“commenting out” for anyone who doesn’t know, is putting a semi colon before a line of code so that everything to the right of the semi-colon is not read/processed.
I guess that I should have read through the code better before posting it.
But to answer your question – there are no extra/hidden or useful defuns in the code. Sorry
I will update it
Thanks for pointing that out
~Greg
