The Select and Previous Commands in AutoCAD

http://wp.me/p1aURt-kp

Of coarse there is the PICKFIRST system variable that lets you select objects first, before starting a command… But here is another option for creating a selection set that is reusable. This command is aptly called the “SELECT” command and is a command in itself.

In this post the Select command will be used to create a selection set and then the selection set will be recalled by using the “Previous” option.

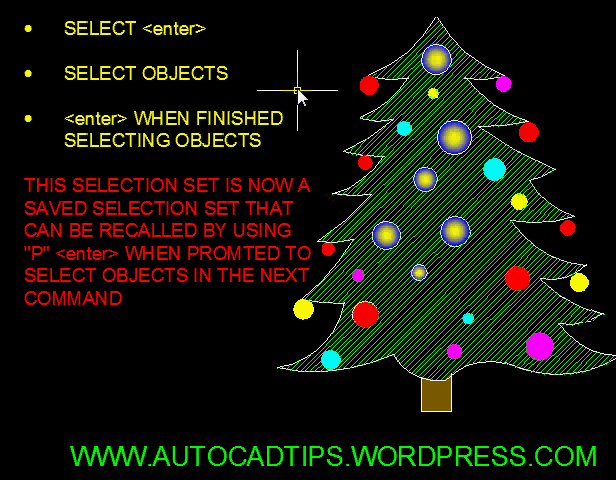

But first, Here’s how to use SELECT:

  • SELECT <enter>
  • Select objects <enter> when finished selecting objects
  • <enter> onve more to accept the selection set.

Note: You will see a total of the selected objects listed in the command line when the select command is finished.

PREVIOUS option

When asked to make a selection set in a command, if you have already made a selection set  of objects, you can use those objects by entering P <enter>. This will call the Previously selected objects.

Here’s how:

  • Start a command that requires you to “select objects:”
  • When prompted to “Select objects:”
  • P <enter>
  • <enter> again to accept the selection set for the command to use.

Advertisements

About AutoCAD Tips

This blog serves as a knowledge base for myself (and anyone else) so that I can reference tips & tricks that I have learned and also refer others to it as well. I hope that this blog helps you learn at least one tip to make your drafting/design experience better.
This entry was posted in BASICS, Modifying, TIPS. Bookmark the permalink.

3 Responses to The Select and Previous Commands in AutoCAD

  1. shubh says:

    BY USING “P” it is pan command that is activated

    • AutoCAD Tips says:

      you must first use the command SELECT and then make a selection set.
      After you make that selection set and exit the command, you start another command that requires you to select objects. When you are prompted to select objects in this NEW command you enter P to select the previous selection set.

  2. sarath kumar s says:

    i have some problem with select previous command
    when i am using copy command with previous selection, it is automatically select all object in the drawing please help me
