AutoLISP: ViewPort Lock & Unlock

Here is another short but sweet LISP routine by Lee-Mac found at the AUGI forums.

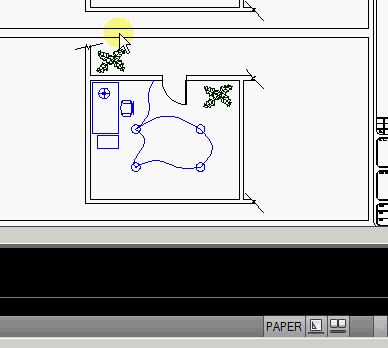

This one is great because it does 4 functions. You can Lock or Unlock viewports byselecting them or you can Lock or Unlock all of the viewports throughout the drawing. I have been using the option to lock all of the viewports throughout the drawing before closing a drawing.

  • VPL – Lock selected viewport
  • VPU – Unlock selected viewport
  • VPLA – Lock ALL viewports
  • VPUA – Unlock ALL viewports

~enjoy

If you have a chance, check out Lee’s website. And if you find anything useful make a donation to his site. He make all of his LISP routines on his website free and he helps many people with their LISP coding questions & problems. www.lee-mac.com

; By Lee-Mac found at the Augi forums

;; Lock Selected Viewport

(vl-load-com)

(defun c:vpl nil

(if (SSVPLock (ssget "_+.:E:S:L" '((0 . "VIEWPORT"))) :vlax-true)

(princ "\n--> Viewport Locked.")

)

(princ)

)

;; Unlock Selected Viewport

(defun c:vpu nil

(if (SSVPLock (ssget "_+.:E:S:L" '((0 . "VIEWPORT"))) :vlax-false)

(princ "\n--> Viewport Unlocked.")

)

(princ)

)

;; Lock All Viewports

(defun c:vpla nil

(SSVPLock (ssget "_X" '((0 . "VIEWPORT"))) :vlax-true)

(princ "\n--> All Viewports Locked.")

(princ)

)

;; Unlock All Viewports

(defun c:vpua nil ;; changed "VPLU" to "VPUA" to be consistant with the above function

(SSVPLock (ssget "_X" '((0 . "VIEWPORT"))) :vlax-false)

(princ "\n--> All Viewports UnLocked.")

(princ)

)

(defun SSVPLock ( ss lock / i )

(if ss

(repeat (setq i (sslength ss))

(vla-put-displaylocked (vlax-ename->vla-object (ssname ss (setq i (1- i)))) lock) t

)

)

)
