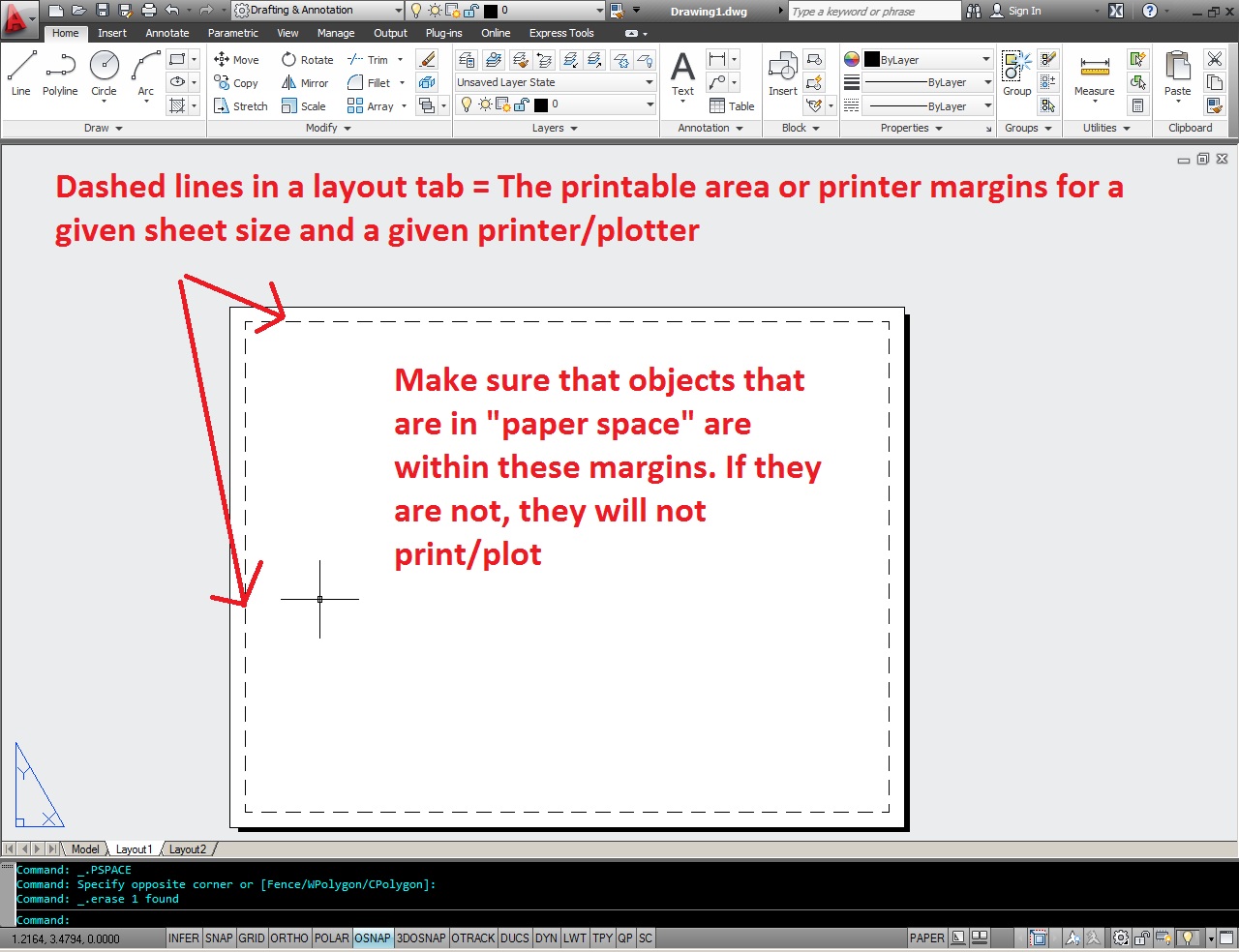

Some one asked me yesterday, “what are the dashed lines that I see when I am in a layout tab?”
Simplified answer: These are the boundary lines that show you the printable area of that Layout Tab’s sheet size and printer/plotter settings.
Depending on what printer and page size you have selected, these margins will change.
Advertisements
Pingback: Layout Tab Cooridinates | AutoCAD Tips
how can i adjust the margins? i want to make my own margin so that my title block will fit. please reply. :)
The margins can’t be modified. these are determined by the printer/plotter. I have 2 suggestions: 1) I would suggest adjusting your title block to fit within the printable area or 2) use the option to print to the PDF printer or “full bleed” as these tend to have more room on a page. In the case of “full bleed,” the entire page is available… Although, I have noticed that not all instances of AutoCAD have a “full bleed” option to choose. I will look into how to set up the “full bleed” option.
Hi there,
I am woundering have you found out why some instances of AutoCAD have not got the “full bleed” option and how to fix it as I am having difficulty figuring it out.
Would really appreciate your help.
Thank you.
Didn’t know about “full bleed” option, very useful. Thank you!
How to change margin in autocad 2013/
You can adjust the margins by adjusting the .PC3 file. Here is an example of how to adjust a .PC3 file. Even though these instructions are for a particular brand, the concept is applicable for other PC3s
https://okb.oceusa.com/English_ext/WFPS/User_Arc/WPD/117/FAQ_wpd117_2009_05_gb/M081133.html
~Greg
