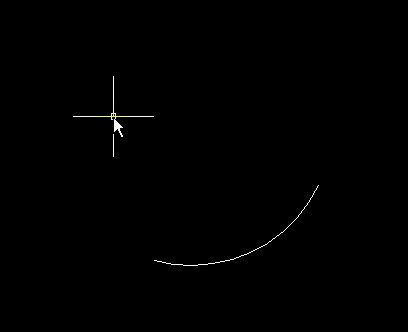

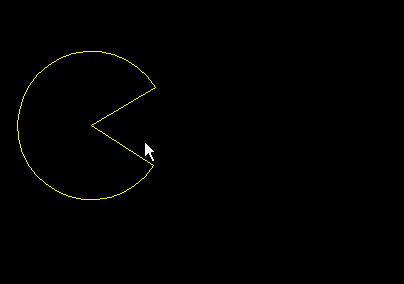

Here’s a great LISP that should be incorporated with AutoCAD. After drawing an arc, we should be able to easily draw a line that is tangent from the arc. Well… until then here;s how…
(Written by Alan JT found @ the swamp.org)
~enjoy
(defun c:TLA (/ *error* ent arc)
;; draw Tangent Line from selected Arc's endpoint
;; Required subroutines: AT:GetSel
;; Alan J. Thompson, 12.14.10
(vl-load-com)
(defun *error* (msg)
(and (eq 4 (length ent)) arc (entdel (car arc)))
(if (and msg (not (wcmatch (strcase msg) "*BREAK*,*CANCEL*,*QUIT*,")))
(princ (strcat "\nError: " msg))
)
)
(if (setq ent (AT:GetSel nentselp
"\nSelect arc from which to draw tangent line: "
(lambda (x) (eq "ARC" (cdr (assoc 0 (entget (car x))))))
)
)
(progn
(if (eq 4 (length ent))
(vla-transformby
(vlax-ename->vla-object (car (setq arc (list (entmakex (entget (car ent))) (cadr ent)))))
(vlax-tmatrix (caddr ent))
)
(setq arc ent)
)
((lambda (points _dist _angle _angtos / ang pnt)
(if (< (_dist (cadr arc) (car points)) (_dist (cadr arc) (cadr points)))
(setq ang (_angtos (+ (/ pi 2.) (_angle (cdr (assoc 50 (entget (car arc)))))))
pnt (car points)
)
(setq ang (_angtos (+ (/ pi 2.) (_angle (cdr (assoc 51 (entget (car arc)))))))
pnt (cadr points)
)
)
(vl-cmdf "_.line" "_non" pnt (strcat "<" ang) PAUSE)
)
(mapcar (function (lambda (p) (trans p 0 1)))
(list (vlax-curve-getStartPoint (car arc)) (vlax-curve-getEndPoint (car arc)))
)
(lambda (a b) (distance (list (car a) (cadr a)) (list (car b) (cadr b))))
(lambda (a)
(if (zerop (getvar 'WORLDUCS))
(- a (angle '(0. 0. 0.) (trans (getvar 'UCSXDIR) 0 (trans '(0. 0. 1.) 1 0 T) T)))
a
)
)
(lambda (a) (angtos a (getvar 'aunits) 16))
)
)
)
(*error* nil)
(princ)
)
(defun AT:GetSel (meth msg fnc / ent good)
;; meth - selection method (entsel, nentsel, nentselp)
;; msg - message to display (nil for default)
;; fnc - optional function to apply to selected object
;; Ex: (AT:GetSel entsel "\nSelect arc: " (lambda (x) (eq (cdr (assoc 0 (entget (car x)))) "ARC")))
;; Alan J. Thompson, 05.25.10
(setvar 'errno 0)
(while (not good)
(setq ent (meth (cond (msg)
("\nSelect object: ")
)
)
)
(cond
((vl-consp ent)
(setq good (cond ((or (not fnc) (fnc ent)) ent)
((prompt "\nInvalid object!"))
)
)
)
((eq (type ent) 'STR) (setq good ent))
((setq good (eq 52 (getvar 'errno))) nil)
((eq 7 (getvar 'errno)) (setq good (prompt "\nMissed, try again.")))
)
)
)
